14mm Small Diameter Stainless Steel Round Tube 0.4-2.0mm Wall AISI 201 304 316
VVINSCO manufactures 14mm outside-diameter stainless steel round tube with a wall-thickness range of 0.4-2.0mm. Available grades are AISI 201, 304 and 316. The tube can be supplied in straight lengths or custom-cut pieces, with 2B, bright or brushed finishes and optional bending, flaring, coiling, drilling and welding services subject to technical confirmation.
Buyer Decision Summary
| Choose This Tube If |
Your design requires a fixed 14mm outside diameter, a 0.4-2.0mm wall, controlled surface quality and optional secondary processing. |
| Best Grade Choice |
201 for cost-sensitive indoor use; 304 for general fabrication; 316 for coastal, humid or more corrosive environments. |
| Recommended Trial |
Request sample confirmation when the tube must be bent, coiled, flared or matched with another component. |
| Order Starting Point |
Normally 300kg per size and wall thickness; 316 production normally requires 3 metric tons per specification. |
| Typical Lead Time |
About 7-15 days for regular production and 15-25 days for customized processing, subject to final specification and production schedule. |
Product Specifications
| Product |
Small Diameter Stainless Steel Round Tube |
| Outside Diameter |
14mm / 0.551 inch |
| Wall Thickness |
0.4-2.0mm / 0.016-0.079 inch |
| Approx. Inside Diameter |
13.2-10.0mm, depending on wall thickness |
| Material Grades |
AISI 201, AISI 304, AISI 316 |
| Surface Finish |
2B, bright, brushed or customized |
| Length |
1m, 2.5m, 3m, 5.85m, 6m or cut to order |
| Section Shape |
Round |
| Reference Standards |
ASTM A554 / EN 10296-2, when specified in the purchase order |
| Processing |
Cutting, bending, flaring, coiling, drilling, polishing and welding |
| MOQ |
Normally 300kg per size/thickness; 316 production normally requires 3 metric tons per specification |
Choose the Right Grade
AISI 201
Cost-effective for indoor decorative and general-purpose components where the service environment is controlled.
AISI 304
The standard choice for general fabrication, equipment, furniture, food-related structures and wider corrosion resistance.
AISI 316
Recommended for coastal, humid, chemical or more corrosive service conditions, subject to project requirements.
Wall Thickness Selection Guide
| Wall Range |
Approx. ID |
Purchasing Consideration |
| 0.4-0.6mm |
13.2-12.8mm |
Lightweight parts, covers and applications where lower weight and easier forming are priorities. |
| 0.7-1.2mm |
12.6-11.6mm |
Balanced strength and fabrication performance for general components and equipment. |
| 1.5-2.0mm |
11.0-10.0mm |
Higher rigidity, stronger connections and machined or load-bearing component requirements. |
Final wall thickness should be selected according to loading, forming radius, welding method, tolerance and applicable project standard.
Processing & Customization
The 14mm tube can be processed for finished or semi-finished components. Feasibility is confirmed according to material grade, wall thickness, bend radius, final tolerance and application.
- Precision cutting to required length
- Bending and coiling trials before mass production
- End flaring, chamfering and deburring
- Drilling, slotting and laser cutting
- Welding, polishing and surface finishing
- Protective film, individual sleeves and customized labels
Typical Applications
Precision Components
Instrument housings, sleeves, spacers and small mechanical parts.
Furniture & Fixtures
Frames, supports, handles, display systems and decorative structures.
Equipment Tubing
Protective conduit, sensor tubes and equipment connection parts.
Custom Fabrication
Bent, coiled, flared or welded components made to drawings or samples.
Pre-Shipment Quality Control

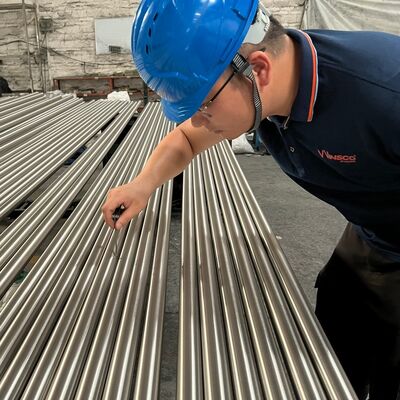

Before release, VVINSCO checks the order against the approved specification. Inspection scope can include material identification, chemical-composition documents, outside diameter, wall thickness, roundness, straightness, bending or coiling performance, surface condition, quantity and label information.
What Buyers Can Confirm Before Shipment
01 Material grade and chemistry documents
02 14mm outside diameter and tolerance
03 Wall thickness and inside diameter
04 Roundness, straightness and surface finish
05 Processing trial and cut length
06 Quantity, labels and packing method
Packing & Delivery Protection
Packing is selected according to surface finish, length, quantity and shipping method. Options include plastic-film protection, individual sleeves, woven bags, cartons, reinforced bundles and wooden cases for LCL shipment. Labels can show grade, size, wall thickness, order number and lot information.
Why Buyers Work with VVINSCO
- 23+ years of stainless steel manufacturing and export experience
- Factory supply for standard and customized tube orders
- Material, size, surface and processing confirmed before production
- Inspection and packing records available for order confirmation
- Support for drawings, samples and repeat-production specifications
Six Details to Confirm Before Ordering
- Grade: 201, 304 or 316.
- Wall thickness: select a value between 0.4mm and 2.0mm.
- Length: standard straight length or custom cut length with tolerance.
- Surface: 2B, bright, brushed or an approved custom finish.
- Processing: bending, coiling, flaring, drilling, welding or polishing.
- Commercial details: quantity, packing method, destination port and required delivery date.
Frequently Asked Questions
What is the exact size of this tube?
The outside diameter is 14mm (0.551 inch), and the available wall thickness is 0.4-2.0mm (0.016-0.079 inch).
Which stainless steel grades are available?
VVINSCO can produce this 14mm round tube in AISI 201, 304 and 316. Grade selection depends on corrosion resistance, fabrication and budget requirements.
Can the 14mm tube be bent, coiled or flared?
Yes. Bending, coiling and flaring are available after the material grade, wall thickness, radius, tolerance and final part drawing are reviewed.
Can you cut the tube to a custom length?
Yes. Straight lengths and cut-to-length pieces are available. Please provide the required length and length tolerance in the inquiry.
What information is required for a quotation?
Please send the material grade, 14mm OD, wall thickness, length, surface finish, processing requirement, quantity and destination port.
Request a Factory-Direct Quotation
Send your grade, thickness, length, finish, quantity and application. VVINSCO will review production feasibility and prepare the correct offer for your project.
14mm OD * 0.4-2.0mm Wall * 201 / 304 / 316
