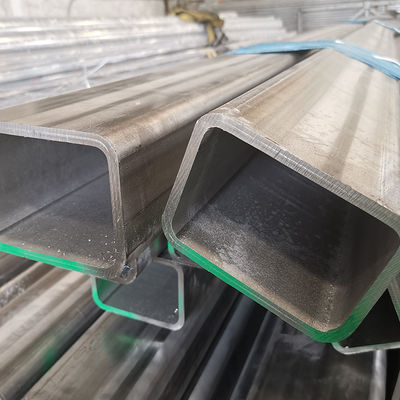

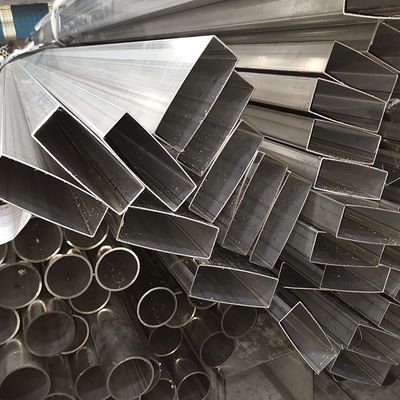

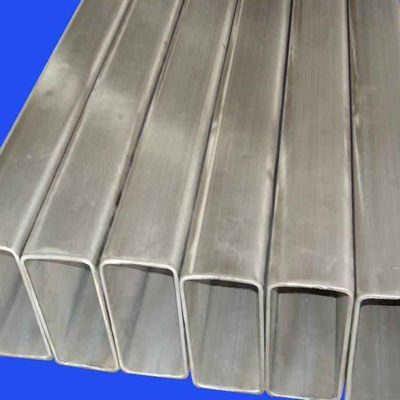

Building Material Inox Tube 201 304 316 316L Grade Large Size Rectangular Mill 80mmx180mm Stainless Steel Pipe

Product Details

Place of Origin: Guangdong,China

Brand Name: WinscoMetal

Certification: ISO,SGS,TUV,MTC,Third Party From Customers

Model Number: WI90

Payment & Shipping Terms

Minimum Order Quantity: 10 Ton or Negotiable

Price: Negotiable

Packaging Details: Stainless Steel Pipe And Tubing: A- one pcs sleeve in plastic bag and then packed by weaving bundle; B- Bundle weight 50 kg max; C- Ink marking on a sticker must stick on each tube and each weaving bundle; D-Customer's logo can be made on pipe or poly bag;

Delivery Time: 7-15 work days

Payment Terms: L/C, D/A, T/T, Western Union, MoneyGram

Supply Ability: 3000 Ton/Tons per Month

Get Best Price
Highlight:
Keyword:
80mmx180mm Stainless Steel Inox Rectangular Tube Pipe,Tubo De Acero Inoxidable
Material:
SS 201, SS 304, SS 304L, SS 316,SS 316L
Thickness:
1.5mm-6.0mm,etc.
Surface:
Mirror,Hairline,PVD Color Or Customized.
Tolerance:
±3%,±5%,±10%
Length:
5.85m,6m,6.1m,7m,length Can Be Customized.
Processing Service:
Bending, Welding, Decoiling, Punching, Cutting, Moulding
Application:
For Construction/shipbuilding/elevator Industy, Etc.
Welding Type::
TIG Welded,Longitudinally Welded Pipes,ERW
Standard:
ASTM A554 / JIS G3446 / CNS 5802 / EN 10217-7 / EN 10296-2,EN 10305-2,EN 10305-5.
Keyword:
80mmx180mm Stainless Steel Inox Rectangular Tube Pipe,Tubo De Acero Inoxidable
Material:
SS 201, SS 304, SS 304L, SS 316,SS 316L
Thickness:
1.5mm-6.0mm,etc.
Surface:
Mirror,Hairline,PVD Color Or Customized.
Tolerance:
±3%,±5%,±10%
Length:
5.85m,6m,6.1m,7m,length Can Be Customized.
Processing Service:
Bending, Welding, Decoiling, Punching, Cutting, Moulding
Application:
For Construction/shipbuilding/elevator Industy, Etc.
Welding Type::
TIG Welded,Longitudinally Welded Pipes,ERW
Standard:
ASTM A554 / JIS G3446 / CNS 5802 / EN 10217-7 / EN 10296-2,EN 10305-2,EN 10305-5.
Building Material Inox Tube 201 304 316 316L Grade Large Size Rectangular Mill 80mmx180mm Stainless Steel Pipe

Building Material Inox Tube 201 304 316 316L Grade Large Size Rectangular Mill 80mmx180mm Stainless Steel Pipe



Product Description:

The Building Material Inox Tube 201 304 316 316L Grade Large Size Rectangular Mill 80mmx180mm Stainless Steel Pipe refers to a rectangular-shaped stainless steel pipe that is used as a building material. Here are some key features and details about this specific product:
1. Material: The stainless steel pipe is made from high-quality stainless steel grades, including 201, 304, 316, and 316L. These grades offer different levels of corrosion resistance, mechanical properties, and suitability for various applications.
2. Shape and Size: The pipe has a rectangular shape, with dimensions of 80mm x 180mm. The rectangular shape makes it suitable for specific architectural or structural applications where rectangular profiles are required.
3. Mill Finish: The stainless steel pipe has a mill finish, which refers to the standard finish achieved during the manufacturing process. This finish has a slightly rough texture and appearance, resulting from the hot rolling or cold rolling processes used to form the pipe. Mill finish pipes are often used in applications where appearance is not a primary concern, or where further surface finishing will be applied.
4. Building Material Application: The Large Size Rectangular Mill Stainless Steel Pipe is primarily used as a building material. It can be used in various construction and architectural applications, such as:
- Structural Support: The pipe can be used as load-bearing components in building structures, such as columns, beams, or trusses.
- Framework and Fencing: It can be used to construct frameworks, enclosures, or fencing for buildings or outdoor structures.
- Interior Design: The pipe can be used for decorative purposes, such as handrails, staircases, or furniture components.
- Infrastructure: It can be used for infrastructure projects, such as bridge construction or transportation systems.
5. Versatility: The rectangular shape and large size of the stainless steel pipe offer versatility in design and application. It can be easily integrated into various architectural and structural designs, providing strength and durability to the structures.



Can Building Material Inox Tube 201 304 316 316L Grade Large Size Rectangular Mill 80mmx180mm Stainless Steel Pipe be reused and recycled?
Yes, the Building Material Inox Tube 201 304 316 316L Grade Large Size Rectangular Mill 80mmx180mm Stainless Steel Pipe can be reused and recycled. Stainless steel is a highly recyclable material, and its properties make it suitable for multiple cycles of use.
Reuse:
Stainless steel pipes can be dismantled and reused in various applications, especially in the construction industry. If the pipe is still in good condition and meets the requirements of a new project, it can be repurposed without undergoing any significant changes. For example, it can be used in a different building or structure, or incorporated into a new architectural design.
Recycling:
Stainless steel is a valuable material that is widely recycled. The recycling process involves collecting the stainless steel pipes, sorting them based on their grade and composition, and then melting them down to produce new stainless steel products. The recycling process for stainless steel is energy-efficient and has a low environmental impact. The recycled stainless steel can be used in various industries, including construction, automotive, and manufacturing.
Recycling stainless steel offers several benefits:
1. Conservation of Resources: Recycling stainless steel helps preserve natural resources by reducing the need for mining and extracting new raw materials. It lessens the environmental impact associated with the extraction and processing of primary stainless steel materials.
2. Energy Savings: Recycling stainless steel consumes significantly less energy compared to producing stainless steel from scratch. The recycling process requires less energy-intensive steps, contributing to energy conservation and reduced greenhouse gas emissions.
3. Economic Value: Stainless steel has a high scrap value, making it economically viable to recycle. By recycling stainless steel pipes, you can contribute to the circular economy and support the recycling industry.
4. Environmental Benefits: Recycling stainless steel helps reduce waste and minimizes the amount of material sent to landfills. It also decreases the demand for new stainless steel production, which can have environmental consequences such as carbon emissions and habitat destruction.
In summary, the Building Material Inox Tube 201 304 316 316L Grade Large Size Rectangular Mill 80mmx180mm Stainless Steel Pipe can be reused in different applications and recycled at the end of its life cycle. Recycling stainless steel is an environmentally friendly option that conserves resources, saves energy, and contributes to a more sustainable future.


Specifications:

Length: 6m                             Unit: KG/support

           Thickness
      Weight
 Size



0.91mm 1.11mm 1.14mm 1.91mm 2.4mm 3mm 3.5mm 4mm 4.5mm 5mm 6mm 7mm 8mm
127mm 17.15 20.89 28.32 35.71 44.69 55.6 64.6 73.53 82.39 91.17
133mm 18.01 21.9 29.8 37.8 46.85 58.29 67.74 77.12 86.43 95.65 113.89
141mm   23.21 29.42 39.71 49.72 61.88 71.93 81.9 91.81 101.63 121.06
159mm   26.19 33.21 44.84 56.17 69.85 81.34 92.67 103.91 115.08 137.2
168mm   27.69 35.11 47.41 59.4 73.98 86.05 98.05 109.97 121.81 145.28
178mm     37.21 50.27 62.99 78.47 91.28 104.02 116.69 129.28 154.24
203mm     42.48 57.4 71.96 89.68 104.36 118.97 133.51 147.97 176.66 205.06
219mm     49.21 61.97 77.7 96.85 112.73 128.54 144.27 159.92 191.01 221.8
254mm       71.96 90.25 112.54 131.04 149.46 167.81 186.08 222.40 258.42 294.14
273mm       77.39 97.07 121.06 140.98 160.82 180.59 200.28 239.43 278.29 316.86
306mm       86.81 108.9 135.86 158.24 180.55 202.78 224.94 269.03 312.82 356.31
325mm       92.23 115.72 144.38 168.18 191.91 215.56 239.14 286.07 332.07 379.03
356mm       101.08 128.64 158.28 184.40 21.44 236.41 262.30 313.87 365.13 416.10
377mm         134.37 167.69 195.38 222.99 250.53 278.00 332.70 387.10 441.21
406mm         144.77 180.70 210.55 240.33 270.04 299.67 358.70 417.44 475.88
426mm         151.95 189.66 221.01 252.29 283.49 314.61 376.64 438.37 499.79
480mm         171.32 213.88 249.26 284.57 319.81 354.97 425.06 494.86 564.36
80mmx80mm 13.86 16.9 21.47 29.08 36.54 45.68 53.29 60.90
90mmx90mm 15.59 18.67 19.34 32.18 40.26 50.06 58.14 66.15
50mmx100mm 12.9 15.73 21.41 27.08 34.26 42.82 49.96 57.1
60mmx100mm 13.76 16.8 22.85 28.29 36.54 45.68 53.29 60.9
80mmx100mm 15.59 19.01 24.15 32.72 41.11 51.39 59.95 68.52
100mmx100mm 17.23 21.02 26.7 36.17 45.45 56.81 66.28 75.75
40mmx120mm 13.76 16.8 22.85 28.89 36.54 45.68 53.29 60.9
60mmx120mm 15.5 18.9 25.7 32.53 41.11 51.39 59.95 68.52
80mmx120mm   21.13 26.84 36.35 45.68 57.1 66.64 76.13 85.64
100mmx120mm     29.52 39.99 50.24 62.81 73.27 83.74 94.21 104.68 125.61
120mmx120mm     32.2 43.62 54.81 68.52 79.93 91.35 102.77 114.19 137.03
50mmx150mm   21.13 26.84 36.35 45.68 57.10 66.61 76.13 85.64
100mmx150mm     35.78 45.25 57.10 71.37 83.27 95.16 107.06 118.95 142.74 166.53 190.32
150mmx150mm     40.25 54.53 68.52 85.64 99.92 114.19 128.47 142.74 171.29 199.84 228.38
80mmx160mm     32.2 43.62 54.81 68.52 79.93 91.35 102.77 114.19 137.03
80mmx180mm       65.43 82.22 102.77 119.90 137.03 154.16 171.29 205.55
100mmx200mm       54.53 68.52 85.64 99.92 114.19 128.47 142.74 171.29 199.84 228.38
150mmx200mm         79.93 99.92 116.57 133.32 149.88 166.53 199.84 233.14 266.45
150mmx300mm         102.3 125.8 148.9 170 191.4 212.6 255 297 338.7
200mmx200mm         91.35 114.19 133.22 152.26 191.29 190.32 228.38 266.45 304.51
250mmx250mm         104.19 142.74 166.53 190.32 214.11 237.9 285.48 333.06 380.64
300mmx300mm         137.03 171.29 199.84 228.38 256.93 285.48 342.58 399.67 456.77
350mmx350mm           199 231.8 264 296.
Special specifications,length and wall thickness can be customized according to customer requirements.



Description

Tube En Inox;Tig Welded Stainless Steel Pipe;Stainless steel tubes; stainless steel welded pipe; 80mmx180mm stainless steel inox rectangular tube pipe;Tubo de acero inoxidable

Material Grade AISI201/ SUS304/ AISI316
Standard

ASTM A554/JIS G3446 /CNS 5802 /EN 10217-7/EN 10296-2,EN 10305-2,EN 10305-5.

Thickness

1.5mm,2.0mm,2.5mm,3.0mm,3.5mm,4.0mm,5.0mm,6.0mm,customized.

Section Shape Rectangular Shape.
Surface BA/2B/NO.1/NO.3/NO.4/8K/HL/2D/1D
Length 5.85m,6m,6.1m,7m,length can be customized.
Application It widely used in auto parts, hardware tools, handicrafts, electronics, textiles, chemicals, machinery, construction,  aerospace,winding various precision springs,hangers,elevator, machinery industry, shipbuilding industry, pharmaceutical industry and etc.



How is the corrosion resistance of Building Material Inox Tube 201 304 316 316L Grade Large Size Rectangular Mill 80mmx180mm Stainless Steel Pipe in marine environments?
The corrosion resistance of the Building Material Inox Tube 201 304 316 316L Grade Large Size Rectangular Mill 80mmx180mm Stainless Steel Pipe in marine environments depends on the specific stainless steel grade used. Here's a general overview of the corrosion resistance of the mentioned grades:
1. Grade 201: Stainless steel grade 201 offers moderate corrosion resistance. It is suitable for indoor or mildly corrosive environments but may not provide optimal resistance in highly corrosive marine environments.
2. Grade 304: Stainless steel grade 304 is a widely used and versatile stainless steel. It offers good general corrosion resistance, including resistance to atmospheric, chemical, and marine environments. It is suitable for most marine applications where moderate corrosion resistance is required.
3. Grade 316: Stainless steel grade 316 is known for its excellent corrosion resistance, particularly in marine environments. It contains molybdenum, which enhances its resistance to pitting and crevice corrosion caused by chloride ions. Grade 316 is often recommended for marine applications due to its superior performance in corrosive conditions.
4. Grade 316L: Stainless steel grade 316L is a low-carbon version of grade 316, which further enhances its corrosion resistance. Like grade 316, it is highly suitable for marine environments and offers excellent resistance to corrosion, including pitting and crevice corrosion.
In general, for marine applications, grade 316 or 316L stainless steel is preferred due to their superior corrosion resistance. These grades are more resistant to the chloride-rich and saltwater environments typically found in marine settings. However, it's important to note that the specific conditions and exposure to corrosive agents can vary in different marine environments, so it's recommended to consult with professionals or corrosion specialists who can provide more specific advice based on the exact application and conditions involved.
