15.9mm (5/8 Inch) Stainless Steel 90 Degree Weld-On Handrail Elbow with 55mm Arc Length in SS201/304/316 and Mirror or Satin Finish

100 pieces or Negotiable
MOQ
Unit price depends on material grade, thickness, surface finish, dimension and order quantity. We support multiple trade terms: EXW, FOB, CIF, CFR, DDP. Please send your required specs and quantity to us for exact quotation.
Price
15.9mm (5/8 Inch) Stainless Steel 90 Degree Weld-On Handrail Elbow with 55mm Arc Length in SS201/304/316 and Mirror or Satin Finish
Features Gallery Product Description Ratings & Review Request A Quote
Features
Specifications
Outside Diameter: 15.9mm / 5/8 Inch
Arc Length: 55mm / 2.17 Inch
Wall Thickness: 1.2mm Or 1.5mm
Material: AISI 201, AISI 304 Or AISI 316 Stainless Steel
Finish: Mirror Polished Or Satin/brushed
Connection Type: Butt-weld / Fabrication Connection
Highlight:

1.5mm stainless steel handrail elbow

,

304 grade mirror satin handrail

,

15.9mm OD stainless steel elbow

Basic Infomation
Place of Origin: FoShan,China.
Brand Name: VVINSCO/WINSCO METAL
Certification: ISO,SGS,TUV,MTC,Third Party From Customers
Model Number: Seaworthy export packing specially designed for stainless steel stair & railing accessories. 1. Individual EPE foam bag for every polished/mirror/600G/PVD fitting to protect surface against scratches. 2. Parts separated by foam padding to prevent collisio
Payment & Shipping Terms
Packaging Details: Stainless Steel Stair/Staircase/Handrail/Railing/Balustrade Accessories:Each piece into one Foam Bag, about 1000pcs into on big carton;Customer's logo can be made on pipe or poly bag.
Delivery Time: Sample: 3-7 days; Mass production: 15-45 days
Payment Terms: L/C,T/T
Supply Ability: 100000 Pieces per Month
Product Description
VVINSCO | Weld-On Railing Components

15.9mm (5/8 Inch) Stainless Steel 90 Degree Handrail Elbow - 55mm Arc Length

A compact weld-on elbow for matching 15.9mm / 5/8 Inch OD stainless steel railing tube. Available in SS201, SS304 and SS316 with mirror-polished or satin/brushed finish for small-diameter decorative handrails, balustrades and fabricated metalwork.

OD 15.9mm / 5/8 Inch90 Degree ElbowArc 55mm / 2.17 Inch1.2 / 1.5mm Wall201 / 304 / 316

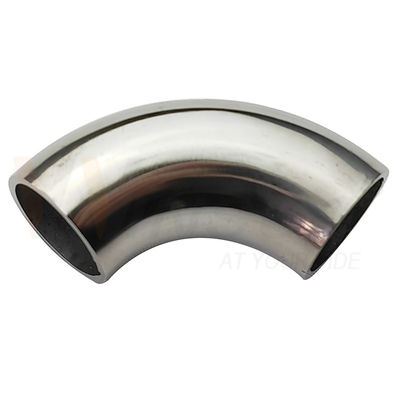

15.9mm (5/8 Inch) Stainless Steel 90 Degree Weld-On Handrail Elbow with 55mm Arc Length in SS201/304/316 and Mirror or Satin Finish

Product Overview

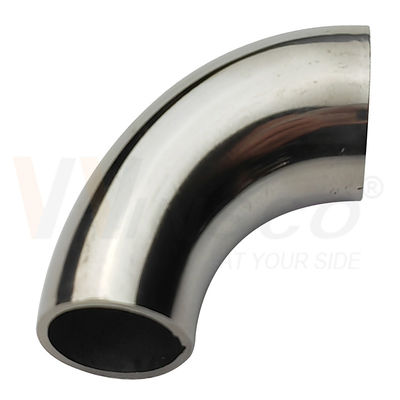

15.9mm (5/8 Inch) Stainless Steel 90 Degree Weld-On Handrail Elbow with 55mm Arc Length in SS201/304/316 and Mirror or Satin Finish

This elbow forms a smooth 90-degree turn between matching stainless steel tube sections. Its 55mm arc length provides a compact bend for light architectural railings and custom stainless steel fabrication. For a clean joint, the elbow OD, wall thickness and finish should be confirmed against the connected tube before production.

Fitment requirement: 15.9mm is the elbow outside diameter. It must be matched to the actual tube OD and wall thickness; 16mm tube should be confirmed separately rather than assumed interchangeable.

Technical Specifications

Product Weld-on stainless steel 90 Degree handrail / railing elbow
Outside Diameter 15.9mm / 5/8 Inch
Arc Length 55mm / approximately 2.17 Inch
Wall Thickness 1.2mm (0.047 Inch) or 1.5mm (0.059 Inch)
Material AISI 201, AISI 304 or AISI 316 stainless steel
Finish Mirror polished (PSS) or satin/brushed (SSS)
Connection Butt-weld / fabrication connection; installer should confirm welding procedure
Customization Grade, finish, dimensions, labeling and packaging subject to drawing and quantity confirmation

Why This Elbow Helps Reduce Installation Risk

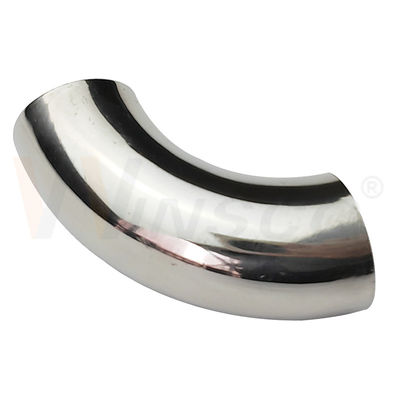

15.9mm (5/8 Inch) Stainless Steel 90 Degree Weld-On Handrail Elbow with 55mm Arc Length in SS201/304/316 and Mirror or Satin Finish

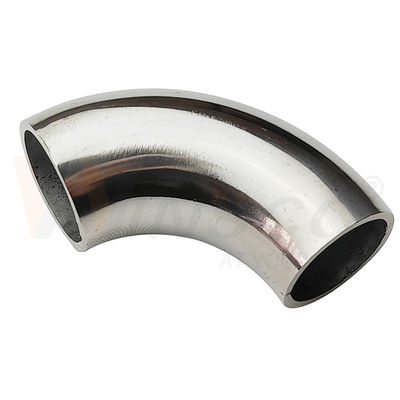

15.9mm (5/8 Inch) Stainless Steel 90 Degree Weld-On Handrail Elbow with 55mm Arc Length in SS201/304/316 and Mirror or Satin Finish

Exact OD IdentificationMetric and inch references help buyers match the elbow to the intended tube.
Defined Arc LengthThe 55mm arc dimension supports layout checks before fabrication.
Finish CoordinationMirror and satin options can be aligned with the connected railing tube.
Grade SelectionChoose 201 for dry interiors, 304 for general architectural use or 316 for coastal and poolside exposure.
Controlled WeldingA matched wall thickness makes alignment, tack welding and weld blending more predictable.
Order VerificationDimensions, material, surface, quantity and labels can be checked before shipment.

90 Degree Elbow Size-Series Reference

The chart below shows the broader VVINSCO elbow series. Confirm the highlighted product specification - 15.9mm OD, 55mm arc and selected wall thickness - on the quotation and approved drawing.

VVINSCO stainless steel 90 degree handrail elbow OD arc length and wall thickness chart

Recommended Welding and Finishing Sequence

  1. Verify 15.9mm tube OD, wall thickness, grade, 90 Degree angle and 55mm arc requirement.
  2. Square-cut, clean and deburr the mating tube ends.
  3. Use a jig to align the elbow and tube at the required 90 Degree direction.
  4. Tack weld symmetrically, then complete the approved TIG welding procedure.
  5. Blend the weld carefully and restore the specified mirror or satin grain.
  6. Inspect angle, joint alignment, dimensions and visible surface before installation.
Engineering note: This is a railing component, not a certified pressure-pipe fitting. Final railing loads, weld design, anchors and installation must follow the project engineer's specification and local building regulations.

What to Send for a Quotation

  • Required OD: 15.9mm / 5/8 Inch
  • Wall thickness: 1.2mm or 1.5mm
  • Grade: SS201, SS304 or SS316
  • Finish: mirror or satin/brushed, including grain requirement
  • Quantity, packing, destination and any drawing or sample

Frequently Asked Questions

Will this elbow fit a 16mm tube?
Not automatically. The listed OD is 15.9mm. Confirm the actual tube tolerance and the intended weld joint before ordering.

Which grade is recommended near the sea or a swimming pool?
SS316 is the preferred option for coastal, poolside and chloride-prone environments. Cleaning and maintenance are still required.

Can VVINSCO supply the matching tube?
Yes. Send the required grade, OD, wall thickness, finish, length and quantity so the elbow and tube can be evaluated as one coordinated order.

Confirm Compatibility Before Production

Send VVINSCO your tube OD, wall thickness, grade, surface, quantity and drawing. Winsco Metal brings more than 23 years of stainless steel manufacturing and export experience to standard and customized railing orders.
