48.3mm OD Stainless Steel Round Tube for Railings in 201/304/316 Grade with Satin or Mirror Finish

1 Metric Ton per Size and Finish; Trial Orders Negotiable
MOQ
Quoted Based on Grade, Size, Thickness, Finish, Quantity and Incoterms
Price
48.3mm OD Stainless Steel Round Tube for Railings in 201/304/316 Grade with Satin or Mirror Finish
Features Gallery Product Description Ratings & Review Request A Quote
Features
Specifications
Outside Diameter: 48.3mm
Material Grade: AISI/SUS 201, 304 And 316
Wall Thickness: 0.4 -3.0mm
Surface Finish: Satin / Brushed Or Mirror Polished
Common Lengths: 3m, 5.8m, 5.85m And 6m
Processing Services: Cutting, Bending, Drilling, Laser Cutting, Welding, Chamfering And Deburring
Manufacturing Reference: EN 10296-2,EN 10088-1,EN ISO 1127,EN 10217-7,ASTM A554,GB/T 18705.GB/T 12771,ASTM A269,JIS G3446,AS/NZS 1528,KS D3595
Inch Reference: Approx. 1.902 Inches / 1.9 Inch OD
Highlight:

stainless steel handrail pipe 48.3mm

,

inox round tube SS 304

,

mirror finish stainless steel tube

Basic Infomation
Place of Origin: Foshan, China
Brand Name: VVINSCO/Winsco Metal
Certification: We support factory audits, pre-shipment inspections. Third-party testing by SGS, TÜV or your appointed inspection agent is acceptable. Relevant material test certificates (EN 10204 3.1 MTC) can be provided upon request.
Model Number: Seaworthy export packing specially designed for stainless steel stair & railing accessories. 1. Individual EPE foam bag for every polished/mirror/600G/PVD fitting to protect surface against scratches. 2. Parts separated by foam padding to prevent collisio
Payment & Shipping Terms
Packaging Details: Each stainless steel pipe is individually sleeved with a plastic bag and bundled with woven straps. Standard max bundle weight: 50kg. If forklift unloading is available at your destination, bundles of 200–500kgs are available, with bundle weight customizab
Delivery Time: We normally produce 1–5 full containers within 25–35 days, **based on individual customer requirements**. Lead time can be adjusted based on order quantity, wall thickness, surface treatment, size specs, shipping schedule and order scope.
Payment Terms: L/C,T/T
Supply Ability: 3,000 -5,000Metric Tons per Month
Product Description

VVINSCO · WINSCO METAL RAILING TUBE

48.3mm (Approx. 1.9 Inch) Stainless Steel Round Railing Tube

201 / 304 / 316 · 0.4–3.0mm Wall Thickness · Satin or Mirror Polished

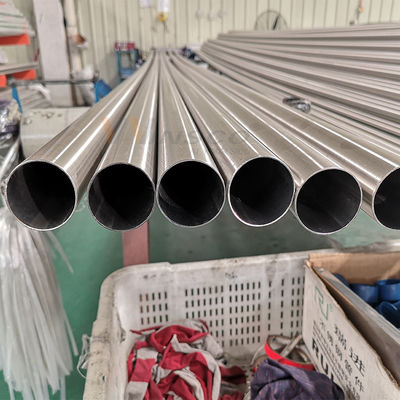

VVINSCO manufactures 48.3mm OD welded stainless steel round tube for handrails, balustrades, guardrails, posts, architectural decoration and fabricated metalwork. Buyers can select 201, 304 or 316 stainless steel, wall thicknesses from 0.4mm to 3.0mm, satin/brushed or mirror-polished surfaces, custom lengths and project-ready processing.

48.3mm OD Stainless Steel Round Tube for Railings in 201/304/316 Grade with Satin or Mirror Finish

Buyer’s size check: 48.3mm equals approximately 1.902 inches and is commonly described as 1.9-inch OD. Some railing and pipe-fitting markets may reference it as 1-1/2-inch nominal pipe size. Always order fittings by the actual 48.3mm outside diameter; 48mm and 50.8mm components are not automatic substitutes.

Product Specifications

Product Welded stainless steel round tube for railing and architectural fabrication
Actual Outside Diameter 48.3mm / approximately 1.902 inches
Market Reference 1.9-inch OD; sometimes referenced as 1-1/2-inch nominal pipe size
Material Grades AISI/SUS 201, 304 and 316
Wall Thickness 0.4–3.0mm; common options include 0.4, 0.5, 0.6, 0.7, 0.8, 0.9, 1.0, 1.2, 1.5, 2.0, 2.5 and 3.0mm
Surface Finish Satin / brushed or mirror polished; sample approval available before production
Manufacturing Reference ASTM A554 ornamental welded stainless steel tubing, subject to order confirmation
Common Lengths 3m, 5.8m, 5.85m and 6m; custom cut lengths available
Processing Services Cutting, bending, drilling, laser cutting, welding, chamfering and deburring
Compatible Components 48.3mm elbows, brackets, end caps, connectors, flanges and glass clamps
Manufacturer Foshan Winsco Metal Products Co., Ltd. · VVINSCO / WINSCO METAL

Choose the Right Stainless Steel Grade

48.3mm OD Stainless Steel Round Tube for Railings in 201/304/316 Grade with Satin or Mirror Finish

Grade Recommended Environment Buyer Guidance
201 Dry indoor railings, furniture and cost-sensitive decorative projects Economical choice where moisture, salt and chloride exposure are limited
304 General indoor and outdoor handrails, posts and architectural projects Common project grade balancing corrosion resistance, fabrication and cost
316 Coastal, humid, poolside or chloride-exposed installations Preferred where enhanced resistance to pitting and corrosion is required

Satin and Mirror Finish Options

Satin / Brushed

A directional brushed finish that helps reduce the visibility of fingerprints and minor handling marks. Common for public stairways, commercial railings and modern interiors.

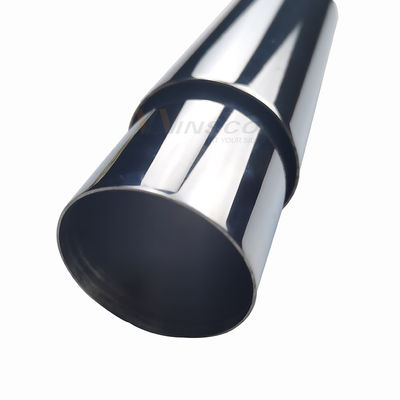

Mirror Polished

A bright reflective finish for hotels, villas, shopping malls and feature railings. Protective film or individual sleeves can be specified for transport protection.

Typical Applications

48.3mm OD Stainless Steel Round Tube for Railings in 201/304/316 Grade with Satin or Mirror Finish

  • Stair handrails and top rails
  • Balcony balustrades and guardrails
  • Railing posts and glass railing frames
  • Hotels, villas and commercial buildings
  • Furniture and display frames
  • Architectural screens and metalwork

Project safety note: Tube thickness alone does not confirm structural suitability. Design load, span, post spacing, anchors, fittings, welds and installation method must follow the approved project drawings and local requirements. Final selection should be verified by the project designer or engineer.

Matched 48.3mm Railing Components

48.3mm OD Stainless Steel Round Tube for Railings in 201/304/316 Grade with Satin or Mirror Finish

VVINSCO can coordinate 48.3mm round tubes with compatible elbows, adjustable connectors, wall brackets, end caps, glass clamps, base flanges and other railing accessories. External fittings must match the actual 48.3mm OD. Insert fittings must also match the selected wall thickness and resulting inside diameter.

Custom Processing Services

48.3mm OD Stainless Steel Round Tube for Railings in 201/304/316 Grade with Satin or Mirror Finish

Full-length tubes or processed components can be supplied according to drawings. Services include fixed-length cutting, angle cutting, bending, drilling, slotting, laser cutting, welding, end chamfering and deburring. Please provide tolerances, hole positions, bend radius, surface direction and quantity for feasibility confirmation.

Inspection Before Shipment

48.3mm OD Stainless Steel Round Tube for Railings in 201/304/316 Grade with Satin or Mirror Finish

48.3mm OD Stainless Steel Round Tube for Railings in 201/304/316 Grade with Satin or Mirror Finish

48.3mm OD Stainless Steel Round Tube for Railings in 201/304/316 Grade with Satin or Mirror Finish

  • Material-grade verification using an appropriate testing method
  • 48.3mm outside diameter, wall thickness and length measurement
  • Roundness, straightness and weld-seam inspection
  • Satin direction or mirror appearance and visible surface inspection
  • Quantity, labels, protective material and packing verification

Export Packing

48.3mm OD Stainless Steel Round Tube for Railings in 201/304/316 Grade with Satin or Mirror Finish

48.3mm OD Stainless Steel Round Tube for Railings in 201/304/316 Grade with Satin or Mirror Finish

48.3mm OD Stainless Steel Round Tube for Railings in 201/304/316 Grade with Satin or Mirror Finish

48.3mm OD Stainless Steel Round Tube for Railings in 201/304/316 Grade with Satin or Mirror Finish

48.3mm OD Stainless Steel Round Tube for Railings in 201/304/316 Grade with Satin or Mirror Finish

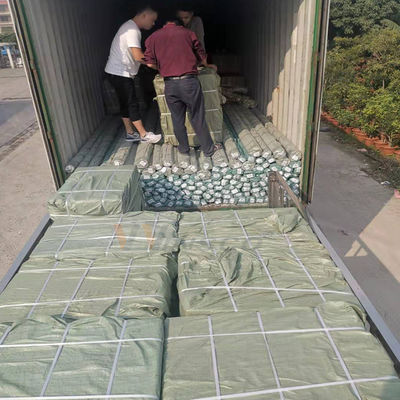

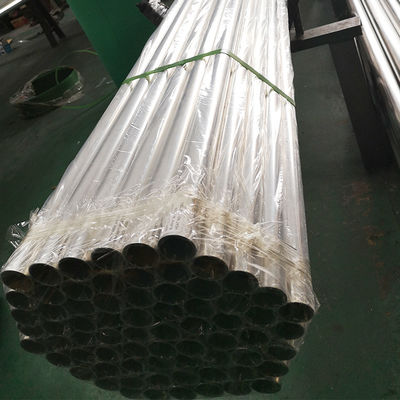

Packing options include protective film, individual plastic sleeves, waterproof woven outer wrapping, reinforced bundles suitable for forklift handling and wooden cases for LCL shipment. Labels can identify grade, 48.3mm OD, thickness, finish, length, quantity and order reference.

Care and Maintenance

48.3mm OD Stainless Steel Round Tube for Railings in 201/304/316 Grade with Satin or Mirror Finish


  • Clean with fresh water, mild detergent and a soft cloth.
  • Wipe in the grain direction on satin-finished tubes.
  • Avoid steel wool, abrasive tools and chloride-based cleaners.
  • Rinse external installations regularly in coastal or polluted environments.

Why Buyers Work with VVINSCO

48.3mm OD Stainless Steel Round Tube for Railings in 201/304/316 Grade with Satin or Mirror Finish

  • 23+ years of experience in stainless steel manufacturing and export supply
  • Specification control for grade, actual OD, wall thickness, finish and length
  • Custom processing and coordinated supply of tubes and railing fittings
  • Pre-shipment checks covering dimensions, surface, quantity, labels and packing
  • Support for samples, drawings and repeat project specifications

Buyer FAQ

Is 48.3mm the same as 2 inches?
No. 48.3mm is approximately 1.902 inches. An exact 2-inch outside diameter is 50.8mm. Confirm the actual OD required by the project and fittings.

Why is 48.3mm sometimes called 1-1/2-inch pipe?
Some markets reference it by nominal pipe size rather than actual OD. For purchasing and fitting compatibility, use the actual 48.3mm outside diameter.

Can 48mm and 48.3mm fittings be mixed?
Not automatically. The dimensional difference can affect close-fitting elbows, caps, connectors and clamps. Confirm the fitting’s stated compatible OD.

Which grade should be used near the sea or swimming pools?
Grade 316 is generally preferred for coastal, poolside or chloride-exposed areas, together with suitable fabrication, cleaning and maintenance.

Can the tube be cut, bent, drilled or welded?
Yes. Processing is available subject to grade, thickness, bend radius, tolerance and approved drawings.

Is this tube intended for pressure service?
Not by default. This page describes welded ornamental/mechanical tubing. Pressure applications require a separately agreed standard, testing and engineering approval.

What information is needed for a quotation?
Provide grade, 48.3mm actual OD, wall thickness, satin or mirror finish, length, quantity, processing, packing request and destination port.

Request a 48.3mm Tube Quotation

201/304/316 + 48.3mm OD + 0.4–3.0mm thickness + satin/mirror finish + length + quantity + processing + destination port
