42.4mm Stainless Steel Railing Tube with Satin or Mirror Finish in 201, 304, 316 Grade by VVINSCO

1 Metric Ton per Size and Finish; Trial Orders Negotiable
MOQ
Quoted Based on Grade, Size, Thickness, Finish, Quantity and Incoterms
Price
42.4mm Stainless Steel Railing Tube with Satin or Mirror Finish in 201, 304, 316 Grade by VVINSCO
Features Gallery Product Description Ratings & Review Request A Quote
Features
Specifications
Outside Diameter: 42.4mm / Approx. 1.669 Inches
Wall Thickness: 0.8–3.0mm
Material Grade: AISI/SUS 201, 304, 316
Surface Finish: Satin, Brushed, Mirror Polished
Length: 3m, 5.8m, 5.85m, 6m Or Customized
Manufacturing Standard: ASTM A554
Processing Services: Cutting, Bending, Drilling, Welding, Laser Cutting
Common Lengths: 3m, 5.8m, 5.85m And 6m
Highlight:

42.4mm stainless steel railing tube

,

SUS 304 mirror finish pipe

,

inox round pipe with warranty

Basic Infomation
Place of Origin: Foshan, China
Brand Name: VVINSCO/Winsco Metal
Certification: We support factory audits, pre-shipment inspections. Third-party testing by SGS, TÜV or your appointed inspection agent is acceptable. Relevant material test certificates (EN 10204 3.1 MTC) can be provided upon request.
Model Number: Seaworthy export packing specially designed for stainless steel stair & railing accessories. 1. Individual EPE foam bag for every polished/mirror/600G/PVD fitting to protect surface against scratches. 2. Parts separated by foam padding to prevent collisio
Payment & Shipping Terms
Packaging Details: Each stainless steel pipe is individually sleeved with a plastic bag and bundled with woven straps. Standard max bundle weight: 50kg. If forklift unloading is available at your destination, bundles of 200–500kgs are available, with bundle weight customizab
Delivery Time: We normally produce 1–5 full containers within 25–35 days, **based on individual customer requirements**. Lead time can be adjusted based on order quantity, wall thickness, surface treatment, size specs, shipping schedule and order scope.
Payment Terms: L/C, T/T
Supply Ability: 3,000 -5,000Metric Tons per Month
Product Description
42.4mm 201 304 316 Stainless Steel Railing Tube, 0.8–3.0mm, Satin or Mirror Finish
VVINSCO * WINSCO METAL RAILING TUBE
42.4mm Stainless Steel Railing Tube - 201, 304 & 316
A 42.4mm outside-diameter welded stainless steel round tube with 0.8-3.0mm wall thickness and satin/brushed or mirror-polished finish, manufactured for handrails, balustrades, guardrails and architectural fabrication.

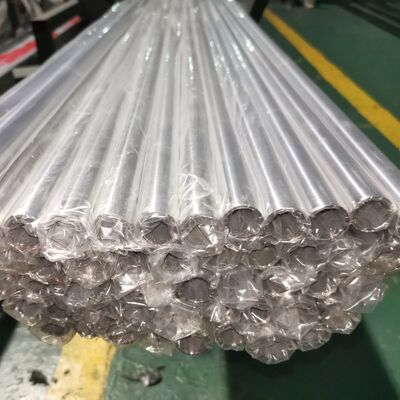

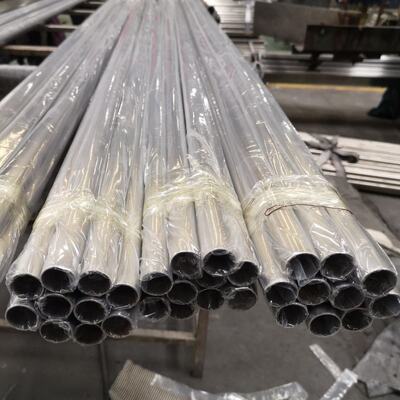

42.4mm stainless steel railing tube product photo
Buyer's quick answer: This tube has an actual outside diameter of 42.4mm (approximately 1.669 inches). It is widely used in modular railing systems and is often associated with 1-1/4 inch nominal pipe, but the nominal inch size is not the actual outside diameter. Match elbows, brackets, end caps and glass clamps by the confirmed 42.4mm OD.
Product Specifications
Product Welded stainless steel round tube for railing and architectural fabrication
Actual Outside Diameter 42.4mm (approximately 1.669 inches)
Material Grades AISI/SUS 201, 304 and 316
Wall Thickness 0.8-3.0mm; common options include 0.8, 1.0, 1.2, 1.5, 2.0, 2.5 and 3.0mm
Surface Finish Satin / brushed or mirror polished; approved finish sample available when required
Manufacturing Standard ASTM A554 ornamental welded stainless steel tubing; other standards subject to agreement
Common Lengths 3m, 5.8m, 5.85m and 6m; custom cut lengths available
Processing Services Cutting, bending, drilling, laser cutting, welding, chamfering and deburring
Compatible Components 42.4mm elbows, brackets, end caps, connectors, flanges and railing fittings
Manufacturer Foshan Winsco Metal Products Co., Ltd. - VVINSCO / WINSCO METAL
Select the Right Grade for Your Project
Stainless steel grade comparison visual guide
Grade Recommended Use Purchasing Guidance
201 Dry indoor railings, furniture and budget-controlled decorative projects Economical option; avoid long-term exposure to moisture, salt and chlorides
304 General indoor and outdoor handrails, stairs and commercial railing systems Common project grade with a practical balance of corrosion resistance and cost
316 Coastal, marine, poolside and chloride-exposed railing installations Preferred where enhanced pitting and corrosion resistance is required
Surface Finish Options
Surface finish options comparison
Satin / Brushed Finish
A directional brushed surface that helps reduce the visibility of fingerprints and light handling marks. It is commonly selected for stair rails, public areas and commercial interiors.
Mirror-Polished Finish
A bright reflective appearance used for hotels, villas, malls and feature railing projects. Individual protective sleeves or film are recommended to help protect the polished surface.
Railing and Architectural Applications
Railing installation example Architectural application example
  • Stair handrails and horizontal top rails
  • Balcony balustrades and guardrail systems
  • Glass railing frames and stainless steel posts
  • Commercial buildings, hotels, villas and shopping malls
  • Furniture frames, partitions and architectural metalwork
Engineering responsibility: Tube grade and wall thickness alone do not determine whether a completed railing meets structural or building-code requirements. Post spacing, anchors, brackets, welds, installation method and design load must be verified by the project designer or local engineer.
Matched Railing Components
Matching railing components and fittings
VVINSCO can coordinate 42.4mm tubes with matching elbows, adjustable connectors, wall brackets, end caps, glass clamps, base flanges and other stainless steel railing fittings. Confirm the actual tube outside diameter and wall thickness so that inserted or external fittings match correctly.
Custom Processing
Custom processing capabilities
Full-length tube and ready-to-install processed parts are available. Services can include fixed-length cutting, bending, drilling, slotting, laser cutting, welding, end chamfering and deburring. Send a drawing showing dimensions, tolerances, hole positions, bend radius, surface direction and quantity for a production review.
Quality Inspection Before Shipment
Quality inspection process
  • Material grade verification using an appropriate testing method
  • Outside diameter, wall thickness and cut-length measurement
  • Roundness, straightness and weld-seam inspection
  • Satin direction or mirror appearance and surface-defect inspection
  • Quantity, bundle labels, protective material and packing confirmation
Export Packing

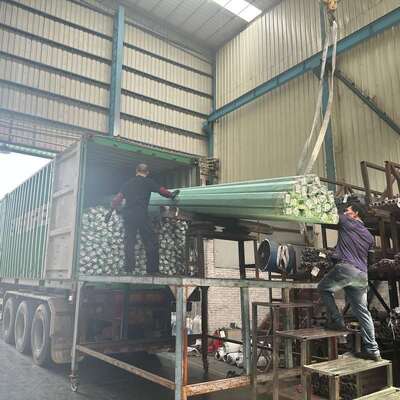

Export packing example 1 Export packing example 2
Packing can include individual plastic sleeves or protective film, waterproof woven outer wrapping, reinforced bundles suitable for forklift handling and wooden cases for LCL shipments. Labels can identify grade, 42.4mm OD, thickness, finish, length, quantity and order reference.
Why Buyers Work with VVINSCO
VVINSCO manufacturing advantages
  • 23+ years of experience in stainless steel manufacturing and export supply.
  • Factory specification control for grade, OD, thickness, finish and length.
  • Custom-order support for drawings, processed tubes and project finishes.
  • Combined purchasing of railing tubes, fittings and related fabricated parts.
  • Shipment verification covering product measurements, surface, labels and packing.
Frequently Asked Questions
What is the inch equivalent of 42.4mm?
42.4mm is approximately 1.669 inches actual OD. It is commonly associated with 1-1/4 inch nominal pipe systems, but nominal size and actual outside diameter are different.
Will 42.4mm railing fittings fit this tube?
Fittings designed for a 42.4mm actual outside diameter normally match, but inserted fittings also depend on tube wall thickness and inside diameter. Confirm both before ordering.
Which grade is recommended near the sea or swimming pools?
Grade 316 is generally preferred for coastal, marine, poolside or chloride-exposed locations. Maintenance conditions and local project specifications should also be considered.
Can the tube be cut, bent, drilled or welded?
Yes. Processing is available subject to material grade, wall thickness, bend radius, tolerances and approved drawings.
Can VVINSCO supply tubes and matching railing accessories together?
Yes. Tubes can be coordinated with compatible elbows, brackets, end caps, glass clamps, connectors and flanges to simplify project purchasing.
What information is required for a quotation?
Provide grade, 42.4mm OD, wall thickness, satin or mirror finish, length, quantity, processing requirements, packing request and destination port.
Request a 42.4mm Railing Tube Quotation
Send VVINSCO: 201/304/316 grade + 42.4mm OD + 0.8 -3.0mm thickness + satin/mirror finish + length + quantity + processing + destination port.
VVINSCO * WINSCO METAL -- Stainless Steel Manufacturing at Your Side
