38.1mm & 50.8mm Short 90° Stainless Steel Handrail Elbow
Compact mirror-polished 90-degree elbow connectors for joining 1.5-inch and 2-inch round stainless steel handrail tubes in staircase, balcony and balustrade projects.
Quick answer: This is a short-radius 90° stainless steel round-tube elbow with internal-fit connecting ends. Standard matching sizes are Ø38.1mm (1-1/2 inch) and Ø50.8mm (2 inch). It is available in SS201, SS304 and SS316 for different budgets, environments and project requirements.
MaterialsSS201 / SS304 / SS316
Tube SizesØ38.1mm / Ø50.8mm
AngleFixed 90° Short Elbow
FinishMirror / Satin
Short 90° Round Handrail Elbow Overview
Winsco short 90-degree handrail elbows provide a neat right-angle transition where a compact corner is required. The rounded outer body creates a finished architectural appearance, while the reduced connecting ends are designed to fit inside compatible round stainless steel tubes. They are suitable for railing fabricators, staircase contractors, hardware wholesalers and OEM handrail-system suppliers.

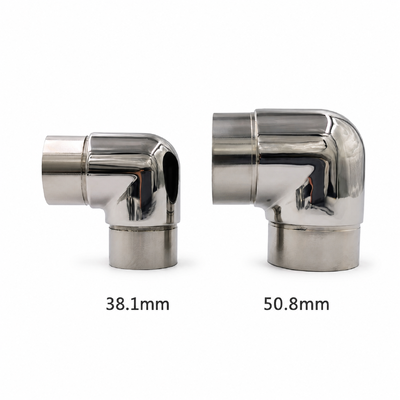

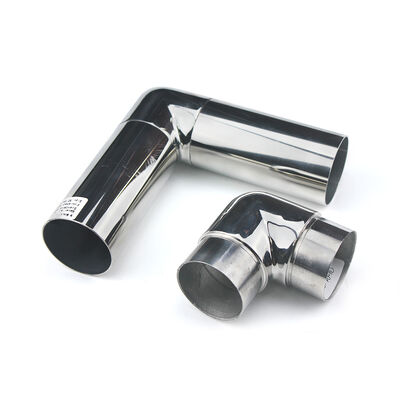

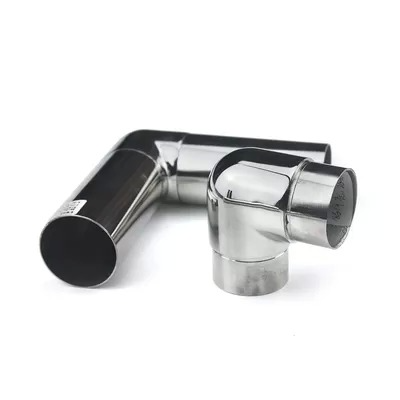

Real product views showing the polished 90° elbow body and insert-style connecting ends.
| Specification | Available Options |
|---|---|
| Product Name | Short 90° stainless steel handrail elbow connector |
| Matching Tube OD | Ø38.1mm (1-1/2 inch) and Ø50.8mm (2 inch) |
| Material Grade | SS201, SS304 or SS316 |
| Elbow Angle | 90 degrees |
| Connection Type | Internal-fit insert / spigot ends for compatible round tubes |
| Surface Finish | Mirror polished or satin/brushed |
| Typical MOQ | 100 pieces per size and finish; stock availability can be checked |
| OEM Service | Material, finish, fit, labels and export packing can be confirmed for project orders |
Fit confirmation is important: Ø38.1mm and Ø50.8mm identify the matching handrail tube outside diameter. Because the elbow inserts into the tube, please also provide the tube wall thickness or actual inside diameter before ordering.
Compact 90° Corner
The short body is practical for tight staircase and railing corners where a long-radius bend is unsuitable.
Clean Tube Transition
Insert-style ends help align the adjoining round tubes and keep the visible connection compact.
Architectural Surface
Mirror or satin polishing can be selected to coordinate with the finish of the handrail tube.
How to Select the Correct Elbow
A correct tube-to-elbow match reduces installation problems and helps the finished handrail maintain a consistent appearance. Confirm the following information before Winsco prepares a quotation or sample.
01
Confirm Tube OD
Select Ø38.1mm (1.5 inch) or Ø50.8mm (2 inch) according to the outside diameter of your round handrail tube.
02
Confirm Wall Thickness
Provide the tube wall thickness or measured inside diameter so the insert end can be matched correctly.
03
Select Grade & Finish
Choose SS201, SS304 or SS316 according to the installation environment and specify a mirror-polished or satin/brushed surface.
Manufacturing & Quality Inspection
Winsco Metal operates three specialized manufacturing bases in Foshan, China, covering stainless steel tubes, sheets and fabricated handrail accessories. With 23+ years of manufacturing and export experience, our team coordinates specification confirmation, production, inspection and protective packing for repeat wholesale and customized project orders.
- Stainless steel grade and incoming material check
- Matching tube OD, wall thickness and insert-end fit check
- 90° angle, body geometry and end alignment inspection
- Weld workmanship and edge condition inspection
- Mirror or satin surface consistency check
- Quantity, labeling and export packing verification

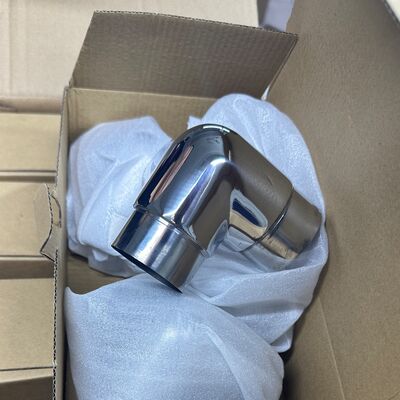

Individual separation and protective packing help reduce surface contact during international transport.
Typical Applications

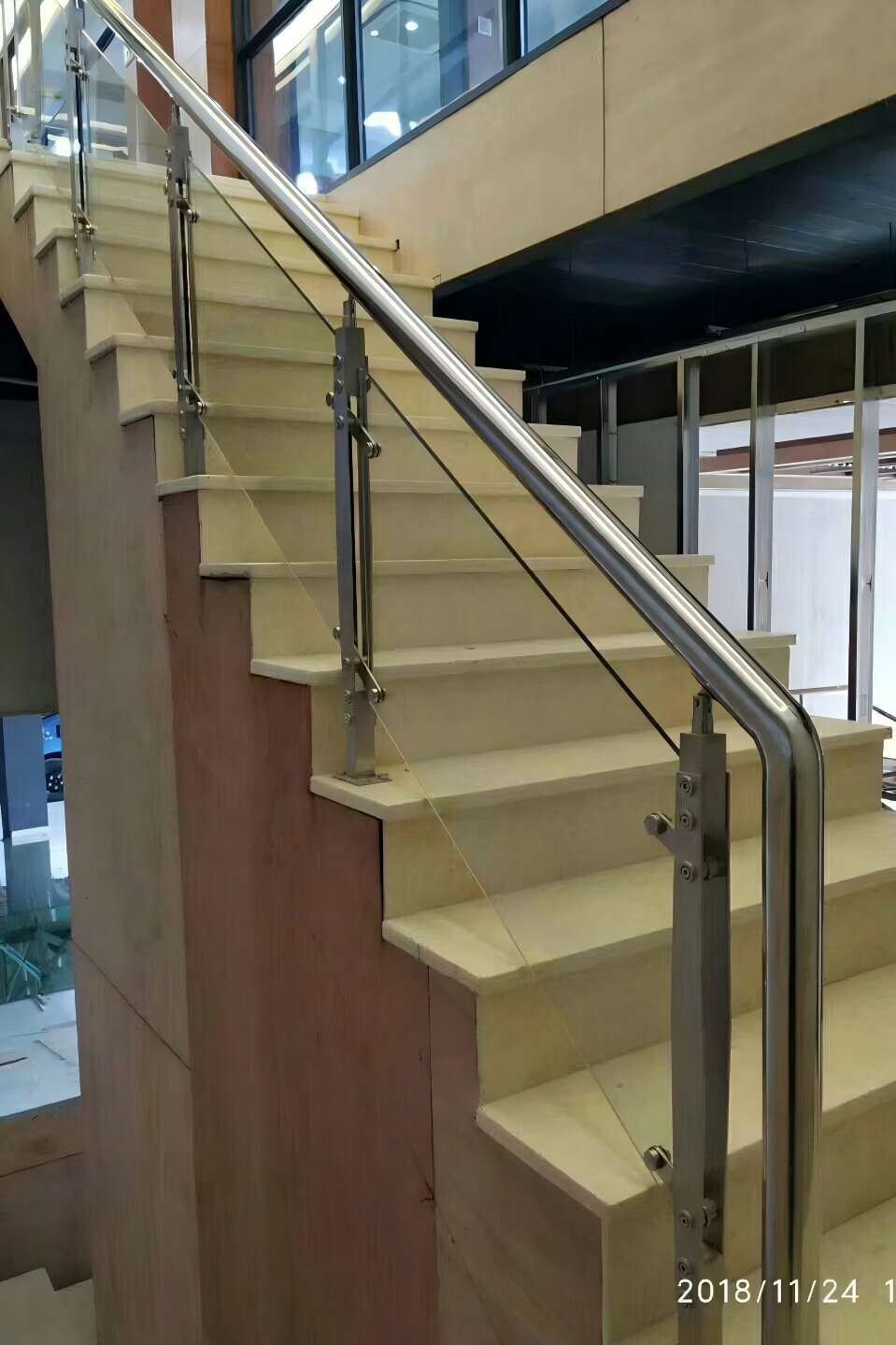

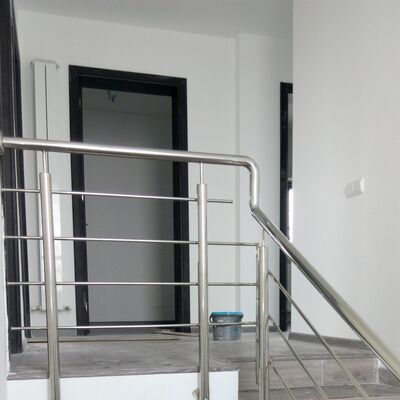

Staircase Handrails
Compact 90° directional connections for indoor or outdoor round-tube staircase handrails.
Balcony & Terrace Railings
Right-angle corner connections for round stainless steel top rails in residential and commercial projects.
Balustrade & Guardrail Systems
Polished railing components for walkways, public areas, entrances and architectural metalwork.
OEM Handrail Kits
Suitable for hardware distributors and fabricators assembling coordinated round-tube railing systems.
Frequently Asked Questions
Does the 38.1mm or 50.8mm size refer to the elbow insert?
No. These sizes normally refer to the outside diameter of the matching round handrail tube. The connecting end is reduced to fit inside the tube, so its final dimension must match the tube inside diameter.
What information is required for an accurate quotation?
Please provide the matching tube OD, tube wall thickness or inside diameter, stainless steel grade, surface finish, quantity and destination port. A tube sample or detailed drawing is helpful when the fit is critical.
How should I choose between SS201, SS304 and SS316?
SS201 is a cost-effective option for dry indoor decorative applications. SS304 is commonly selected for general architectural handrails, while SS316 provides better corrosion resistance for coastal, humid or more demanding environments. Final material selection should follow the project specification and local service conditions.
Can the surface match my stainless steel handrail tube?
Yes. Mirror-polished and satin/brushed finishes are available. Please state the required finish standard or send a reference sample so appearance can be confirmed before mass production.
How is this 90° elbow installed?
The reduced ends insert into compatible round tubes. The final fixing method, such as structural adhesive or welding, should follow the railing-system design and applicable local building requirements.
Can Winsco provide a sample before a bulk order?
Yes. Sample availability, fit requirements, cost and lead time can be confirmed after the complete tube specification is received.
Request a Quotation for 38.1mm or 50.8mm 90° Elbows
Send the matching tube OD, tube wall thickness, stainless steel grade, surface finish, required quantity and destination port. Winsco will check the insert fit and prepare a suitable supply and packing proposal.
