WINSCO PRODUCT DETAIL PAGE

Stainless Steel Adjustable
Handrail Support Bracket

Precision support and clean alignment for round-tube stair, railing and balustrade systems

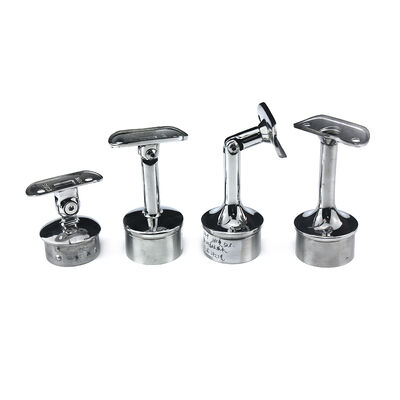

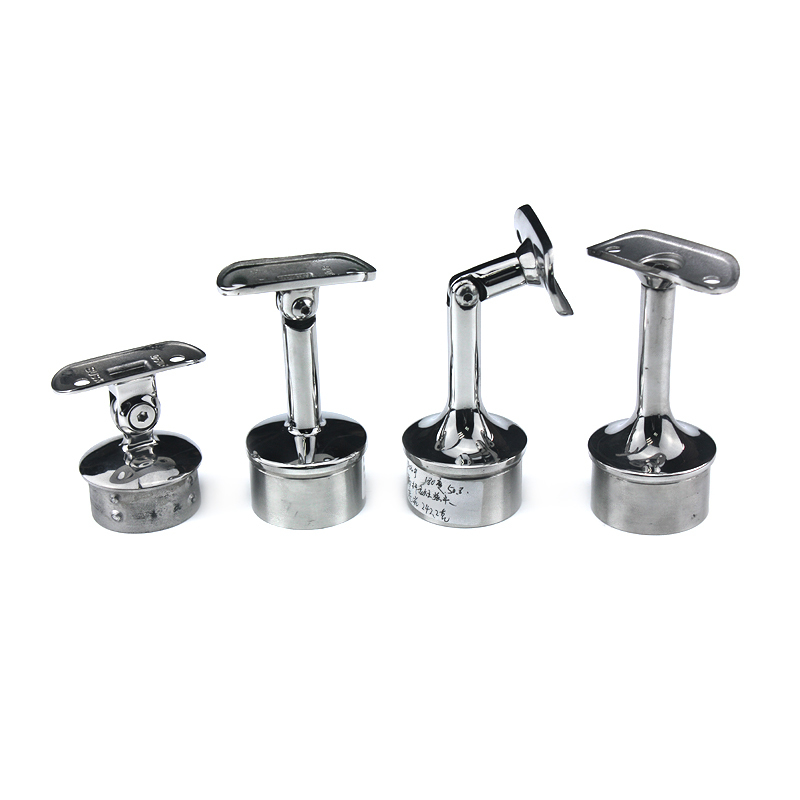

Winsco stainless steel handrail support bracket series - adjustable and fixed saddle configurations.

FACTORY-MADE. SUS 201 / 304 / 316 options • Mirror or satin finish • Custom post and handrail matching • OEM/ODM accepted

Built for Secure Support and a Professional Finish

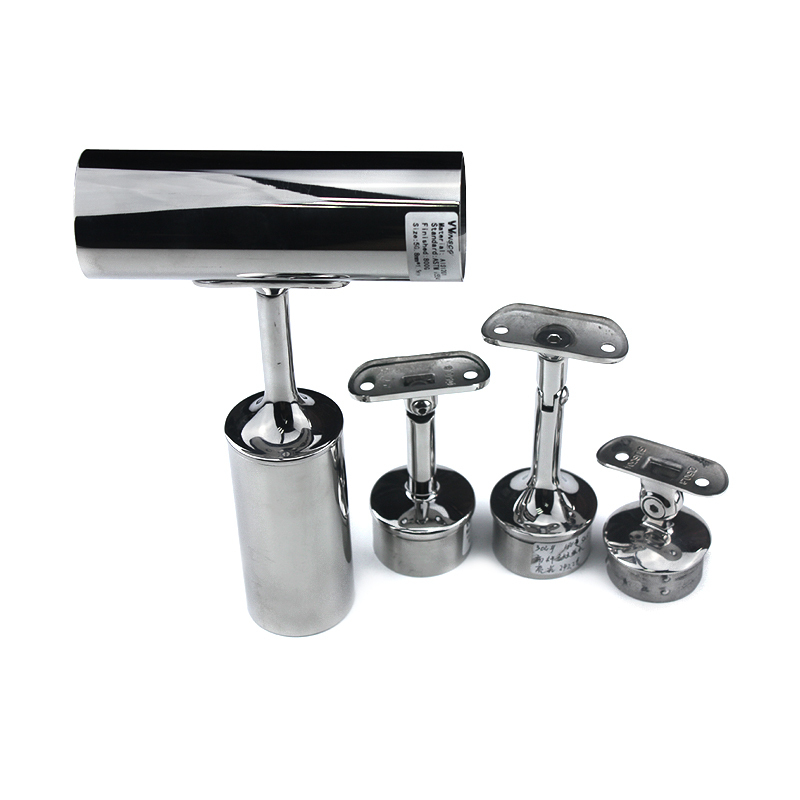

A versatile stainless steel fitting that connects a vertical railing post to a round top handrail.

Winsco stainless steel adjustable handrail support bracket is engineered for stair handrails, balcony railings and architectural balustrade systems. The bracket combines a round socket-style base, a strong support stem, an adjustable or fixed joint, and an oval saddle plate that fastens beneath the top rail. Its compact construction helps installers achieve a clean connection while allowing the handrail angle and position to match the project layout.

QUICK ANSWER: This product is a stainless steel stair railing fitting used to support and align a round top handrail above a vertical post. Adjustable models are especially useful on sloped stair runs.

Key Selling Points

· Adjustable installation - the swivel joint can accommodate stair slopes and changing handrail angles on selected models.

· Clean architectural appearance - smooth contours and polished surfaces coordinate with modern stainless steel railing systems.

· Reliable material choices - available in SUS 201, SUS 304 and SUS 316 to suit indoor, outdoor and higher-corrosion environments.

· Project-ready customization - diameter, height, saddle curvature, hole pattern, surface finish and packaging can be produced to drawing or sample.

· Matching system supply - Winsco can supply stainless steel tubes and compatible handrail accessories for coordinated purchasing.

Product Options

SPECIFICATION NOTE: Final dimensions, angle range and load requirements must be confirmed by drawing, matching tube data or an approved sample before mass production.

One Product Family, Multiple Railing Configurations

Choose fixed, hinged or adjustable support structures according to the post, handrail and stair geometry.

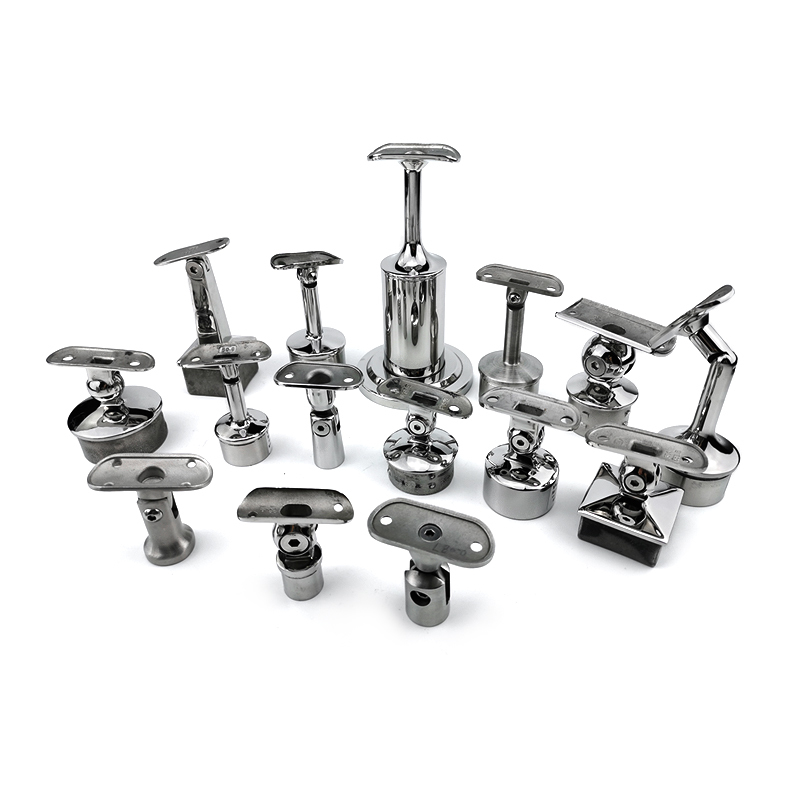

Product family: different support heights, socket bases, joint types and saddle profiles.

The images show several related support structures within the same handrail fitting family. Some models use a hinged saddle to align with a sloping handrail, while fixed versions provide a stable connection for level rail sections. The correct bracket should be selected according to the matching post diameter, top-rail diameter, installation angle and preferred fixing method.

CUSTOM ORDER: Send your tube outer diameter, installation drawing, finish, quantity and destination port. Winsco will check fit, material use, packing volume and quotation.

Controlled Production from Forming to Final Finish

The production route is adjusted to the selected model, but the following core operations show how Winsco controls shape, dimensions and assembly.

Stage 1: stamping, wire cutting and CNC machining.

1. Stamping and forming - stainless steel sheet or pre-cut components are formed into saddle plates, bases and connecting elements with consistent geometry.

2. Wire cutting and tooling preparation - precision cutting prepares profiles, tooling or small functional details required for repeatable assembly.

3. CNC machining - socket sections, stems and joint components are machined to controlled dimensions for a stable fit with matching railing tubes.

PROCESS CONTROL: Material grade, component dimensions and the customer-approved drawing are checked before the next operation to reduce rework and ensure order consistency.

Accurate Assembly and Surface Finishing

After machining, holes, joints and visible surfaces are completed according to the order specification.

Stage 2: drilling, welding and polishing.

1. Precision drilling - fixing holes and joint positions are drilled to match the saddle plate, fasteners and installation design.

2. Welding and assembly - support stems, sockets and saddle components are joined and aligned; adjustable joints are checked for movement and fit.

3. Grinding and polishing - weld areas and visible surfaces are refined to produce a clean mirror-polished or satin-brushed appearance.

Final Quality Checks

· Dimensions and fit - critical sizes, tube matching and hole positions are checked against the drawing or approved sample.

· Surface appearance - visible faces are inspected for scratches, incomplete polishing, sharp edges and obvious deformation.

· Assembly function - joint movement, fastener positions and saddle contact are reviewed before protective packing.

Designed for Sloped and Level Round-Tube Handrails

A correct support bracket keeps the top rail aligned above the post while maintaining a clean architectural transition.

Illustrative installation scene based on the supplied Winsco product structure; final connection details depend on the selected model.

Where This Handrail Support Bracket Is Used

· Staircase railings - adjustable saddles help follow the angle of ascending or descending top rails.

· Balcony and terrace railings - fixed supports provide a neat connection on straight, level sections.

· Glass balustrade systems - the bracket can coordinate with stainless steel posts, glass clamps and round top rails.

· Commercial and residential projects - suitable for entrances, corridors, hotels, offices, apartments and public interiors.

MATERIAL GUIDANCE: SUS 304 is a common choice for general architectural use. SUS 316 is preferred for coastal, poolside or more corrosive environments. SUS 201 can be considered for cost-sensitive indoor projects when the service environment is suitable.

Protected for Export, Organized for Dispatch

Finished fittings are separated to reduce surface contact, packed by model and quantity, and staged for shipment.

Individual protection, carton packing and warehouse staging before export.

Packing Process

1. Surface protection - polished fittings are placed in protective bags or wrapping to help prevent scratching and contact marks.

2. Model separation - different sizes or item codes are counted and packed separately to simplify receiving and inventory checks.

3. Export cartons - inner protection and outer cartons are selected according to product weight, quantity and transportation method.

4. Warehouse staging - completed cartons are grouped by order before loading or consolidation with tubes and other railing accessories.

PACKING CUSTOMIZATION: Barcode labels, customer item codes, carton marks, logo packaging and pallet or wooden-case reinforcement can be discussed before production.

A Manufacturing Partner for Stainless Steel Railing Projects

Winsco combines product manufacturing, matching tube supply, export experience and customized order support.

1. More than 23 years of industry experience - practical knowledge of stainless steel tubes, sheets and railing accessories helps reduce specification and matching errors.

2. Factory production and process visibility - stamping, machining, drilling, welding, polishing, packing and warehouse handling can be documented for customer review.

3. SUS 201 / 304 / 316 options - material selection can be matched to project environment, performance requirements and target budget.

4. Custom orders are welcome - Winsco can work from drawings, samples, tube data and packing requirements for OEM and ODM projects.

5. One-stop matching capability - buyers can source stainless steel tubes and compatible handrail fittings together for better system coordination.

6. Export-focused service - clear quotations, samples, production follow-up, inspection support, packing control and shipping documentation are available.

Frequently Asked Questions

1. What is a stainless steel adjustable handrail support bracket?

It is a railing fitting installed between a vertical post and a round top handrail. The saddle supports the handrail, while the adjustable joint helps align it with the stair angle on compatible models.

2. Which stainless steel grade should I choose?

SUS 304 is widely used for general indoor and outdoor architectural railings. SUS 316 offers higher corrosion resistance for coastal, poolside and demanding environments. SUS 201 is typically considered for suitable indoor, cost-sensitive applications.

3. Can the bracket be used on sloped stair handrails?

Yes. Select an adjustable or hinged model and provide the installation angle or drawing. Winsco will confirm the appropriate structure and saddle contact before production.

4. Is this bracket suitable for every round tube size?

The base socket and saddle must match the post and top-rail diameters. Please provide both tube outer diameters and wall thicknesses; custom matching is available.

5. Can Winsco manufacture a custom size or saddle?

Yes. Custom base diameter, bracket height, saddle curvature, hole pattern, joint design, surface finish and packaging can be evaluated from a drawing or physical sample.

6. What surface finishes are available?

Mirror polished and satin brushed are common choices. Other finishes can be discussed, but feasibility should be confirmed against the material grade, quantity and target appearance.

7. Can I order matching stainless steel tubes and other railing fittings?

Yes. Winsco supplies stainless steel round, square and rectangular tubes together with elbows, end caps, glass clamps, spigots, brackets and other balustrade accessories.

8. How are polished brackets packed?

Finished pieces are individually protected, counted by item, placed in export cartons and reinforced according to shipment method. Custom labels and carton marks can be arranged.

9. Can I request a sample before a bulk order?

Yes. Sample availability, cost and lead time depend on whether the selected model is standard or customized. Approved samples can be used as the production reference.

10. Why should buyers choose Winsco?

Winsco is a professional stainless steel manufacturer and exporter with more than 20 years of experience, in-house production capability, flexible customization and coordinated supply of tubes and railing fittings.

Please Send These Details

· Material grade: SUS 201, SUS 304 or SUS 316.

· Matching tubes: post outer diameter and wall thickness; handrail outer diameter and wall thickness.

· Configuration: fixed or adjustable joint, required height, saddle shape and hole pattern.

· Finish and quantity: mirror or satin, quantity per item, sample requirement and packing request.

Delivery information: destination port/country and preferred trade term.
