Home > Products > Stainless Steel Inox > Lower Cost 201 304 316 Grade Inox Square Tube Mirror Stain Finished 200mmx200mm Large Size Stainless Steel Pipe

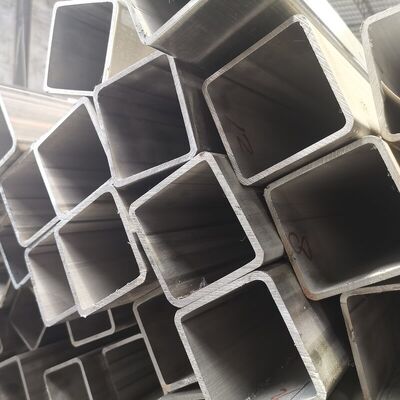

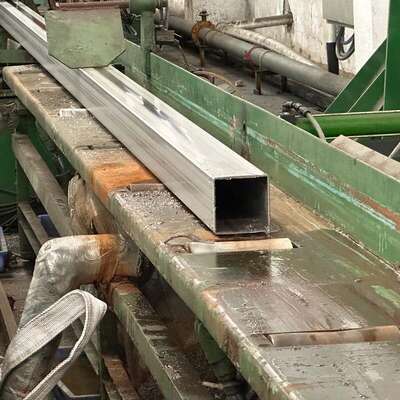

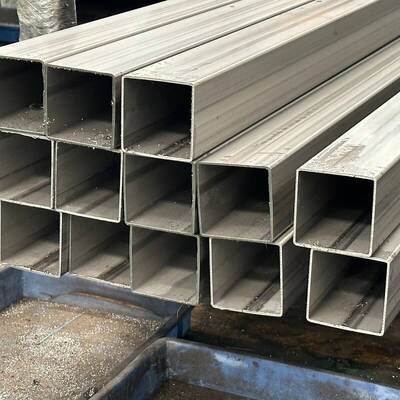

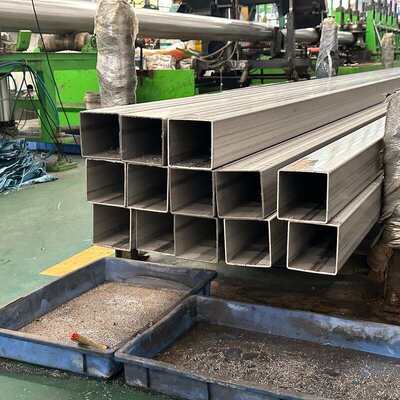

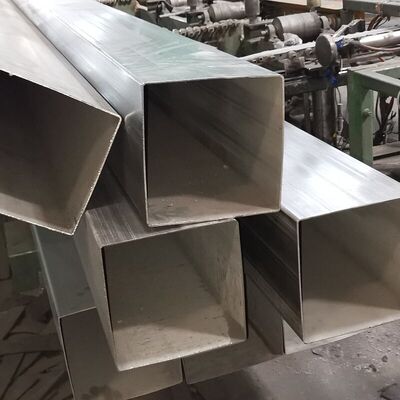

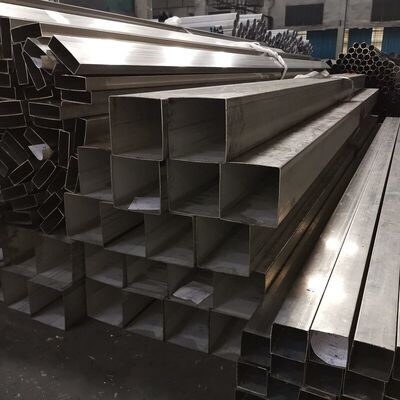

Lower Cost 201 304 316 Grade Inox Square Tube Mirror Stain Finished 200mmx200mm Large Size Stainless Steel Pipe

Product Details

Place of Origin: Guangdong,China

Brand Name: WinscoMetal

Certification: ISO,SGS,TUV,MTC,Third Party From Customers

Model Number: WI88

Payment & Shipping Terms

Minimum Order Quantity: 5 Ton or Negotiable

Price: Negotiable

Packaging Details: Stainless Steel Pipe And Tubing: A- one pcs sleeve in plastic bag and then packed by weaving bundle; B- Bundle weight 50 kg max; C- Ink marking on a sticker must stick on each tube and each weaving bundle; D-Customer's logo can be made on pipe or poly bag;

Delivery Time: 7-15 work days

Payment Terms: L/C, D/A, T/T, Western Union, MoneyGram

Supply Ability: 3000 Ton/Tons per Month

Get Best Price
Highlight:
Keyword:
200mmx200mm Stainless Steel Inox Square Tube Pipe,Tubo Cuadrado De Acero Inoxidable
Material:
SS 201, SS 304, SS 304L, SS 316,SS 316L
Thickness:
2.0mm-8.0mm,etc.
Surface:
Mirror,Hairline,PVD Color Or Customized.
Tolerance:
±3%,±5%,±10%
Length:
5.85m,6m,6.1m,7m,length Can Be Customized.
Processing Service:
Bending, Welding, Decoiling, Punching, Cutting, Moulding
Application:
For Construction/shipbuilding/elevator Industy, Etc.
Welding Type::
TIG Welded,Longitudinally Welded Pipes,ERW
Standard:
ASTM A554 / JIS G3446 / CNS 5802 / EN 10217-7 / EN 10296-2,EN 10305-2,EN 10305-5.
Keyword:
200mmx200mm Stainless Steel Inox Square Tube Pipe,Tubo Cuadrado De Acero Inoxidable
Material:
SS 201, SS 304, SS 304L, SS 316,SS 316L
Thickness:
2.0mm-8.0mm,etc.
Surface:
Mirror,Hairline,PVD Color Or Customized.
Tolerance:
±3%,±5%,±10%
Length:
5.85m,6m,6.1m,7m,length Can Be Customized.
Processing Service:
Bending, Welding, Decoiling, Punching, Cutting, Moulding
Application:
For Construction/shipbuilding/elevator Industy, Etc.
Welding Type::
TIG Welded,Longitudinally Welded Pipes,ERW
Standard:
ASTM A554 / JIS G3446 / CNS 5802 / EN 10217-7 / EN 10296-2,EN 10305-2,EN 10305-5.
Lower Cost 201 304 316 Grade Inox Square Tube Mirror Stain Finished 200mmx200mm Large Size Stainless Steel Pipe

Lower Cost 201 304 316 Grade Inox Square Tube Mirror Stain Finished 200mmx200mm Large Size Stainless Steel Pipe



Product Description:

The Lower Cost 201 304 316 Grade Inox Square Tube Mirror Stain Finished 200mmx200mm Large Size Stainless Steel Pipe refers to a square tube made of stainless steel, specifically grades 201, 304, or 316. It has a mirror stain finish and a large size of 200mmx200mm.
Here are the key characteristics and aspects of this stainless steel pipe:
1. Stainless Steel Grades: The pipe is available in different grades, including 201, 304, and 316. These grades offer varying levels of corrosion resistance and mechanical properties.
- Grade 201: It is a lower-cost alternative to traditional stainless steel grades. While it offers good corrosion resistance, it may be less resistant to certain corrosive environments compared to grades 304 and 316.
- Grade 304: It is a versatile and commonly used stainless steel grade known for its excellent corrosion resistance, high strength, and good formability. It is suitable for a wide range of applications, including architectural, industrial, and food processing.
- Grade 316: It is an austenitic stainless steel grade with superior corrosion resistance, particularly in chloride-rich environments. It offers excellent resistance to pitting corrosion and is commonly used in marine, chemical processing, and medical applications.
2. Inox Square Tube: The pipe is in the form of a square tube, which provides stability and rigidity. The square shape allows for easy integration into structural systems and is suitable for applications requiring structural support or aesthetic appeal.
3. Mirror Stain Finish: The pipe has a mirror stain finish, which provides a polished and reflective surface. This finish enhances the visual appearance of the pipe and can be desirable in architectural or decorative applications.
4. Large Size: The pipe has large dimensions of 200mmx200mm, indicating a significant cross-sectional area. This large size makes it suitable for applications that require high flow rates or structural strength.
The Lower Cost 201 304 316 Grade Inox Square Tube Mirror Stain Finished 200mmx200mm Large Size Stainless Steel Pipe offers a cost-effective solution for various applications, including construction, architecture, infrastructure, and industrial projects. However, it is important to consider the specific requirements of the application, such as corrosion resistance, mechanical properties, and aesthetic preferences, when selecting the appropriate stainless steel grade and finish.



Will Lower Cost 201 304 316 Grade Inox Square Tube Mirror Stain Finished 200mmx200mm Large Size Stainless Steel Pipe deform or creep under high temperature conditions?
The deformation or creep behavior of the Lower Cost 201 304 316 Grade Inox Square Tube Mirror Stain Finished 200mmx200mm Large Size Stainless Steel Pipe under high-temperature conditions depends on several factors, including the stainless steel grade, the specific temperature, and the duration of exposure. Let's discuss the general behavior of stainless steel grades 201, 304, and 316 under high-temperature conditions:
1. Grade 201: Stainless steel grade 201 is a lower-cost alternative to grades 304 and 316, but it generally has lower heat resistance properties. At elevated temperatures, grade 201 stainless steel may experience more significant deformation and creep compared to grades 304 and 316.
2. Grade 304: Stainless steel grade 304 exhibits good heat resistance properties. It maintains its strength and formability up to temperatures around 870°C (1600°F). At higher temperatures, deformation and creep may occur over extended periods, depending on the specific conditions.
3. Grade 316: Stainless steel grade 316 offers excellent heat resistance properties. It has a higher melting point and better creep resistance compared to grade 304. Grade 316 can withstand temperatures up to approximately 925°C (1700°F) without significant deformation or creep.
It's important to note that the behavior of stainless steel under high-temperature conditions can be influenced by factors such as the presence of corrosive media, stress levels, and the duration of exposure. Additionally, the specific design and dimensions of the square tube can also affect its resistance to deformation and creep.
If the Lower Cost 201 304 316 Grade Inox Square Tube Mirror Stain Finished 200mmx200mm Large Size Stainless Steel Pipe will be exposed to high temperatures, it's recommended to consider using a higher-grade stainless steel with better heat resistance, such as grade 316. Consulting with a materials engineer or a stainless steel specialist would be advisable to ensure the correct selection of stainless steel grade and to assess the suitability of the pipe for the specific high-temperature application.


Specifications:

Length: 6m                             Unit: KG/support

           Thickness
      Weight
 Size



0.91mm 1.11mm 1.14mm 1.91mm 2.4mm 3mm 3.5mm 4mm 4.5mm 5mm 6mm 7mm 8mm
127mm 17.15 20.89 28.32 35.71 44.69 55.6 64.6 73.53 82.39 91.17
133mm 18.01 21.9 29.8 37.8 46.85 58.29 67.74 77.12 86.43 95.65 113.89
141mm   23.21 29.42 39.71 49.72 61.88 71.93 81.9 91.81 101.63 121.06
159mm   26.19 33.21 44.84 56.17 69.85 81.34 92.67 103.91 115.08 137.2
168mm   27.69 35.11 47.41 59.4 73.98 86.05 98.05 109.97 121.81 145.28
178mm     37.21 50.27 62.99 78.47 91.28 104.02 116.69 129.28 154.24
203mm     42.48 57.4 71.96 89.68 104.36 118.97 133.51 147.97 176.66 205.06
219mm     49.21 61.97 77.7 96.85 112.73 128.54 144.27 159.92 191.01 221.8
254mm       71.96 90.25 112.54 131.04 149.46 167.81 186.08 222.40 258.42 294.14
273mm       77.39 97.07 121.06 140.98 160.82 180.59 200.28 239.43 278.29 316.86
306mm       86.81 108.9 135.86 158.24 180.55 202.78 224.94 269.03 312.82 356.31
325mm       92.23 115.72 144.38 168.18 191.91 215.56 239.14 286.07 332.07 379.03
356mm       101.08 128.64 158.28 184.40 21.44 236.41 262.30 313.87 365.13 416.10
377mm         134.37 167.69 195.38 222.99 250.53 278.00 332.70 387.10 441.21
406mm         144.77 180.70 210.55 240.33 270.04 299.67 358.70 417.44 475.88
426mm         151.95 189.66 221.01 252.29 283.49 314.61 376.64 438.37 499.79
480mm         171.32 213.88 249.26 284.57 319.81 354.97 425.06 494.86 564.36
80mmx80mm 13.86 16.9 21.47 29.08 36.54 45.68 53.29 60.90
90mmx90mm 15.59 18.67 19.34 32.18 40.26 50.06 58.14 66.15
50mmx100mm 12.9 15.73 21.41 27.08 34.26 42.82 49.96 57.1
60mmx100mm 13.76 16.8 22.85 28.29 36.54 45.68 53.29 60.9
80mmx100mm 15.59 19.01 24.15 32.72 41.11 51.39 59.95 68.52
100mmx100mm 17.23 21.02 26.7 36.17 45.45 56.81 66.28 75.75
40mmx120mm 13.76 16.8 22.85 28.89 36.54 45.68 53.29 60.9
60mmx120mm 15.5 18.9 25.7 32.53 41.11 51.39 59.95 68.52
80mmx120mm   21.13 26.84 36.35 45.68 57.1 66.64 76.13 85.64
100mmx120mm     29.52 39.99 50.24 62.81 73.27 83.74 94.21 104.68 125.61
120mmx120mm     32.2 43.62 54.81 68.52 79.93 91.35 102.77 114.19 137.03
50mmx150mm   21.13 26.84 36.35 45.68 57.10 66.61 76.13 85.64
100mmx150mm     35.78 45.25 57.10 71.37 83.27 95.16 107.06 118.95 142.74 166.53 190.32
150mmx150mm     40.25 54.53 68.52 85.64 99.92 114.19 128.47 142.74 171.29 199.84 228.38
80mmx160mm     32.2 43.62 54.81 68.52 79.93 91.35 102.77 114.19 137.03
80mmx180mm       65.43 82.22 102.77 119.90 137.03 154.16 171.29 205.55
100mmx200mm       54.53 68.52 85.64 99.92 114.19 128.47 142.74 171.29 199.84 228.38
150mmx200mm         79.93 99.92 116.57 133.32 149.88 166.53 199.84 233.14 266.45
150mmx300mm         102.3 125.8 148.9 170 191.4 212.6 255 297 338.7
200mmx200mm         91.35 114.19 133.22 152.26 191.29 190.32 228.38 266.45 304.51
250mmx250mm         104.19 142.74 166.53 190.32 214.11 237.9 285.48 333.06 380.64
300mmx300mm         137.03 171.29 199.84 228.38 256.93 285.48 342.58 399.67 456.77
350mmx350mm           199 231.8 264 296.
Special specifications,length and wall thickness can be customized according to customer requirements.



Description

Tube En Inox;Tig Welded Stainless Steel Pipe;Stainless steel tubes; stainless steel welded pipe; 200mmx200mm stainless steel inox square tube pipe;Tubo cuadrado de acero inoxidable

Material Grade AISI201/ SUS304/ AISI316L
Standard

ASTM A554/JIS G3446 /CNS 5802 /EN 10217-7/EN 10296-2,EN 10305-2,EN 10305-5.

Thickness

2.0mm,2.5mm,3.0mm,3.5mm,4.0mm,5.0mm,6.0mm,7.0mm,8.0mm,customized.

Section Shape Square Shape.
Surface BA/2B/NO.1/NO.3/NO.4/8K/HL/2D/1D
Length 5.85m,6m,6.1m,7m,length can be customized.
Application It widely used in auto parts, hardware tools, handicrafts, electronics, textiles, chemicals, machinery, construction,  aerospace,winding various precision springs,hangers,elevator, machinery industry, shipbuilding industry, pharmaceutical industry and etc.



Are Lower Cost 201 304 316 Grade Inox Square Tube Mirror Stain Finished 200mmx200mm Large Size Stainless Steel Pipe suitable for the manufacture of chemical storage tanks?
Lower Cost 201 304 316 Grade Inox Square Tube Mirror Stain Finished 200mmx200mm Large Size Stainless Steel Pipes can be suitable for the manufacture of chemical storage tanks depending on the specific requirements of the application. Here are some considerations:
1. Chemical Compatibility: Stainless steel grades 201, 304, and 316 exhibit varying levels of corrosion resistance to different chemicals. It is important to assess the chemical composition of the substances stored in the tank and verify their compatibility with the chosen stainless steel grade. Grade 316 generally offers the highest corrosion resistance and is often preferred for storage of corrosive chemicals.
2. Design and Fabrication: The design and fabrication of the storage tank should consider factors such as structural integrity, weldability, and appropriate thickness. The large size and square shape of the stainless steel pipe can provide stability and strength to the tank structure, but the overall tank design should be evaluated by a qualified engineer to ensure it meets the necessary safety and structural requirements.
3. Surface Finish: The mirror stain finish of the stainless steel pipe can provide a smooth and easy-to-clean surface, which is advantageous in chemical storage applications. It helps to minimize the risk of chemical buildup and facilitates maintenance and cleaning procedures.
4. Operating Conditions: Consideration should be given to the operating conditions of the chemical storage tank, including temperature, pressure, and potential exposure to corrosive environments. Higher temperatures or aggressive chemical environments may require the use of higher-grade stainless steel, such as 316, for enhanced corrosion resistance and durability.
5. Regulatory Compliance: Ensure that the chosen stainless steel grade and tank design comply with relevant industry standards and regulations regarding the storage and handling of chemicals. Local regulations and codes may specify specific material requirements for chemical storage tanks.
It is crucial to consult with a qualified engineer or a professional experienced in chemical storage tank design and fabrication to assess the specific requirements of your application. They can help determine the appropriate stainless steel grade, design considerations, and any additional protective measures needed to ensure the safe and reliable storage of chemicals.

Lower Cost 201 304 316 Grade Inox Square Tube Mirror Stain Finished 200mmx200mm Large Size Stainless Steel Pipe 0
