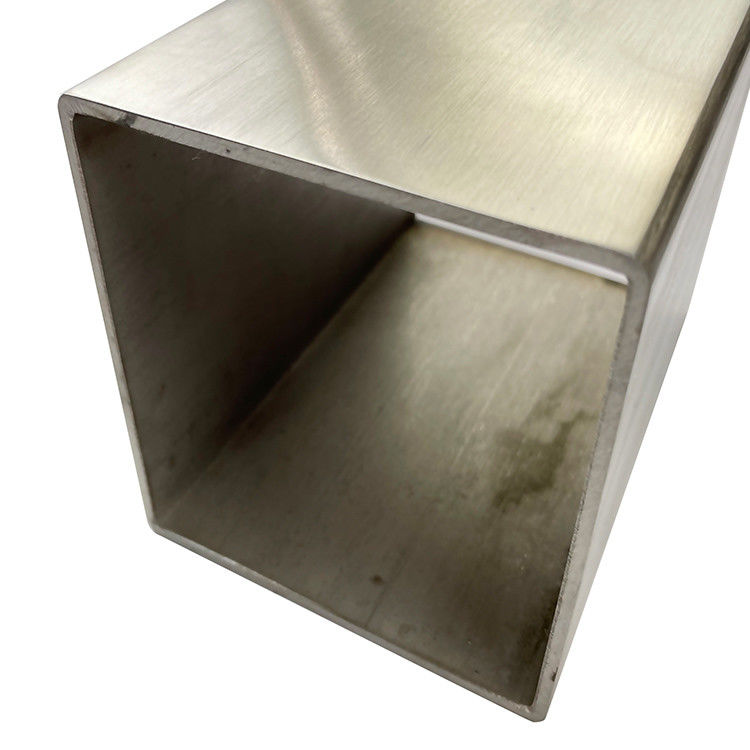

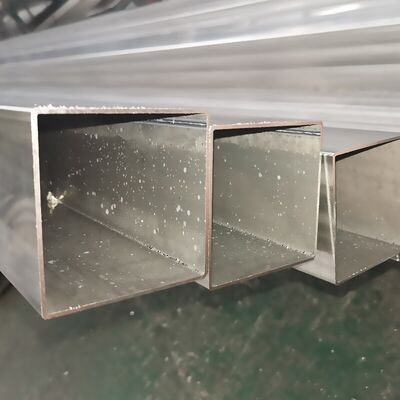

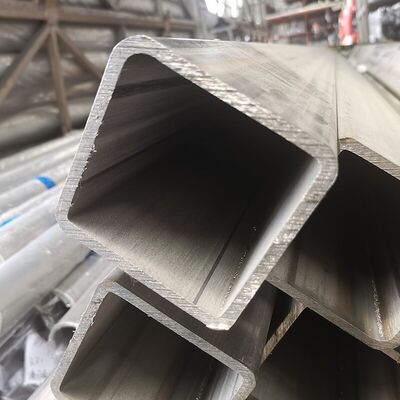

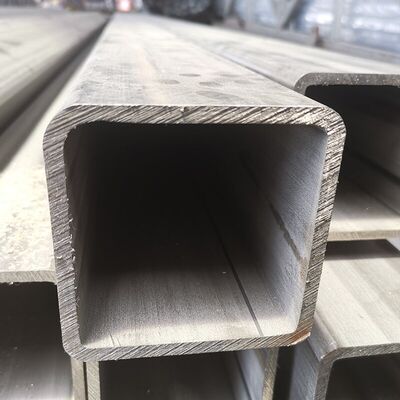

SUS 201 AISI 304 TP 316 Grade Large Size Inxo Thick Wall Tube 120mmx120mm Stainless Steel Square Pipe

Product Details

Place of Origin: Guangdong,China

Brand Name: WinscoMetal

Certification: ISO,SGS,TUV,MTC,Third Party From Customers

Model Number: WI87

Payment & Shipping Terms

Minimum Order Quantity: 10 Ton or Negotiable

Price: Negotiable

Packaging Details: Stainless Steel Pipe And Tubing: A- one pcs sleeve in plastic bag and then packed by weaving bundle; B- Bundle weight 50 kg max; C- Ink marking on a sticker must stick on each tube and each weaving bundle; D-Customer's logo can be made on pipe or poly bag;

Delivery Time: 7-15 work days

Payment Terms: L/C, D/A, T/T, Western Union, MoneyGram

Supply Ability: 3000 Ton/Tons per Month

Get Best Price
Highlight:
Keyword:
120mmx120mm Stainless Steel Inox Square Tube Pipe,Tubo Cuadrado De Acero Inoxidable
Material:
SS 201, SS 304, SS 304L, SS 316,SS 316L
Thickness:
1.0mm-6.0mm,etc.
Surface:
Mirror,Hairline,PVD Color Or Customized.
Tolerance:
±3%,±5%,±10%
Length:
5.85m,6m,6.1m,7m,length Can Be Customized.
Processing Service:
Bending, Welding, Decoiling, Punching, Cutting, Moulding
Application:
For Construction/shipbuilding/elevator Industy, Etc.
Welding Type::
TIG Welded,Longitudinally Welded Pipes,ERW
Standard:
ASTM A554 / JIS G3446 / CNS 5802 / EN 10217-7 / EN 10296-2,EN 10305-2,EN 10305-5.
Keyword:
120mmx120mm Stainless Steel Inox Square Tube Pipe,Tubo Cuadrado De Acero Inoxidable
Material:
SS 201, SS 304, SS 304L, SS 316,SS 316L
Thickness:
1.0mm-6.0mm,etc.
Surface:
Mirror,Hairline,PVD Color Or Customized.
Tolerance:
±3%,±5%,±10%
Length:
5.85m,6m,6.1m,7m,length Can Be Customized.
Processing Service:
Bending, Welding, Decoiling, Punching, Cutting, Moulding
Application:
For Construction/shipbuilding/elevator Industy, Etc.
Welding Type::
TIG Welded,Longitudinally Welded Pipes,ERW
Standard:
ASTM A554 / JIS G3446 / CNS 5802 / EN 10217-7 / EN 10296-2,EN 10305-2,EN 10305-5.
SUS 201 AISI 304 TP 316 Grade Large Size Inxo Thick Wall Tube 120mmx120mm Stainless Steel Square Pipe

SUS 201 AISI 304 TP 316 Grade Large Size Inxo Thick Wall Tube 120mmx120mm Stainless Steel Square Pipe



What are the characteristics of SUS 201 AISI 304 TP 316 Grade Large Size Inxo Thick Wall Tube 120mmx120mm Stainless Steel Square Pipe in terms of corrosion resistance?
It's important to clarify that SUS 201 is not the same as AISI 304 or AISI 316 stainless steel grades. SUS is the Japanese Industrial Standards (JIS) designation for stainless steel, while AISI is the American Iron and Steel Institute designation. Therefore, SUS 201 is a different grade from AISI 304 and AISI 316.
That being said, let's discuss the general corrosion resistance characteristics of AISI 304 and AISI 316 stainless steel grades, as well as their potential influence on the SUS 201 AISI 304 TP 316 Grade Large Size Inxo Thick Wall Tube 120mmx120mm Stainless Steel Square Pipe:
1. AISI 304: AISI 304 stainless steel is a versatile grade that offers good general corrosion resistance. It is resistant to atmospheric corrosion and is suitable for a wide range of applications in mild corrosive environments. However, AISI 304 may exhibit susceptibility to corrosion in chloride-rich environments or in the presence of certain corrosive chemicals.
2. AISI 316: AISI 316 stainless steel is known for its superior corrosion resistance, particularly in chloride-rich environments. It provides excellent resistance to pitting corrosion and crevice corrosion, making it highly suitable for applications in marine environments, chemical processing plants, and other aggressive chloride-containing environments.
Considering the characteristics of AISI 304 and AISI 316, it's important to note that SUS 201, being a different stainless steel grade, may have different corrosion resistance properties. SUS 201 is a lower-cost alternative to AISI 304 and is generally considered to have lower corrosion resistance compared to AISI 304. However, the corrosion resistance of SUS 201 can be improved by applying surface treatments or coatings.
To determine the specific corrosion resistance characteristics of the SUS 201 AISI 304 TP 316 Grade Large Size Inxo Thick Wall Tube 120mmx120mm Stainless Steel Square Pipe, it is advisable to consult with the manufacturer or supplier. They can provide detailed information about the specific grade of stainless steel used (SUS 201) and any additional measures taken to enhance corrosion resistance.



How heavy is the SUS 201 AISI 304 TP 316 Grade Large Size Inxo Thick Wall Tube 120mmx120mm Stainless Steel Square Pipe? What impact does C201 AISI 304 TP 316 Grade Large Size Inxo Thick Wall Tube 120mmx120mm Stainless Steel Square Pipe have on the structure?
The weight of the SUS 201 AISI 304 TP 316 Grade Large Size Inxo Thick Wall Tube 120mmx120mm Stainless Steel Square Pipe can be calculated based on the dimensions of the pipe. The weight per meter (or per foot) of stainless steel pipes is determined by the formula:
Weight = (Cross-sectional area) x (Density) x (Length)
To calculate the weight, we need to know the density of the specific stainless steel grade used in the pipe. The density of stainless steel can vary depending on the alloying elements and specific grade. Here are the approximate densities of commonly used stainless steel grades:
- SUS 201: Approximately 7.93 g/cm³
- AISI 304: Approximately 8.00 g/cm³
- AISI 316: Approximately 8.00 g/cm³
By using the density value and the dimensions of the pipe (120mm x 120mm), the weight per meter (or per foot) of the specific pipe can be calculated.
Regarding the impact of the SUS 201 AISI 304 TP 316 Grade Large Size Inxo Thick Wall Tube 120mmx120mm Stainless Steel Square Pipe on the structure, it is important to consider several factors:
1. Strength and Load-Bearing Capacity: The thick wall design of the pipe enhances its strength and load-bearing capacity. This makes it suitable for applications where structural integrity and support are crucial, such as building frameworks, industrial structures, or infrastructure projects.
2. Stability and Rigidity: The square shape of the pipe provides better stability and rigidity compared to round pipes. It can help resist bending and torsional forces, making it suitable for applications that require structural stability, such as columns or beams.
3. Corrosion Resistance: The use of AISI 304 and AISI 316 stainless steel grades in the pipe enhances its corrosion resistance. This is particularly important in environments where the pipe may be exposed to moisture, chemicals, or corrosive substances. The corrosion resistance of the pipe can contribute to the long-term durability and reliability of the structure.
4. Compatibility and Versatility: Stainless steel is compatible with various construction materials and can be used in conjunction with other building components. The SUS 201 AISI 304 TP 316 Grade Large Size Inxo Thick Wall Tube 120mmx120mm Stainless Steel Square Pipe can be integrated into different structural systems and designs, providing versatility in construction projects.


Specifications:

Length: 6m                             Unit: KG/support

           Thickness
      Weight
 Size



0.91mm 1.11mm 1.14mm 1.91mm 2.4mm 3mm 3.5mm 4mm 4.5mm 5mm 6mm 7mm 8mm
127mm 17.15 20.89 28.32 35.71 44.69 55.6 64.6 73.53 82.39 91.17
133mm 18.01 21.9 29.8 37.8 46.85 58.29 67.74 77.12 86.43 95.65 113.89
141mm   23.21 29.42 39.71 49.72 61.88 71.93 81.9 91.81 101.63 121.06
159mm   26.19 33.21 44.84 56.17 69.85 81.34 92.67 103.91 115.08 137.2
168mm   27.69 35.11 47.41 59.4 73.98 86.05 98.05 109.97 121.81 145.28
178mm     37.21 50.27 62.99 78.47 91.28 104.02 116.69 129.28 154.24
203mm     42.48 57.4 71.96 89.68 104.36 118.97 133.51 147.97 176.66 205.06
219mm     49.21 61.97 77.7 96.85 112.73 128.54 144.27 159.92 191.01 221.8
254mm       71.96 90.25 112.54 131.04 149.46 167.81 186.08 222.40 258.42 294.14
273mm       77.39 97.07 121.06 140.98 160.82 180.59 200.28 239.43 278.29 316.86
306mm       86.81 108.9 135.86 158.24 180.55 202.78 224.94 269.03 312.82 356.31
325mm       92.23 115.72 144.38 168.18 191.91 215.56 239.14 286.07 332.07 379.03
356mm       101.08 128.64 158.28 184.40 21.44 236.41 262.30 313.87 365.13 416.10
377mm         134.37 167.69 195.38 222.99 250.53 278.00 332.70 387.10 441.21
406mm         144.77 180.70 210.55 240.33 270.04 299.67 358.70 417.44 475.88
426mm         151.95 189.66 221.01 252.29 283.49 314.61 376.64 438.37 499.79
480mm         171.32 213.88 249.26 284.57 319.81 354.97 425.06 494.86 564.36
80mmx80mm 13.86 16.9 21.47 29.08 36.54 45.68 53.29 60.90
90mmx90mm 15.59 18.67 19.34 32.18 40.26 50.06 58.14 66.15
50mmx100mm 12.9 15.73 21.41 27.08 34.26 42.82 49.96 57.1
60mmx100mm 13.76 16.8 22.85 28.29 36.54 45.68 53.29 60.9
80mmx100mm 15.59 19.01 24.15 32.72 41.11 51.39 59.95 68.52
100mmx100mm 17.23 21.02 26.7 36.17 45.45 56.81 66.28 75.75
40mmx120mm 13.76 16.8 22.85 28.89 36.54 45.68 53.29 60.9
60mmx120mm 15.5 18.9 25.7 32.53 41.11 51.39 59.95 68.52
80mmx120mm   21.13 26.84 36.35 45.68 57.1 66.64 76.13 85.64
100mmx120mm     29.52 39.99 50.24 62.81 73.27 83.74 94.21 104.68 125.61
120mmx120mm     32.2 43.62 54.81 68.52 79.93 91.35 102.77 114.19 137.03
50mmx150mm   21.13 26.84 36.35 45.68 57.10 66.61 76.13 85.64
100mmx150mm     35.78 45.25 57.10 71.37 83.27 95.16 107.06 118.95 142.74 166.53 190.32
150mmx150mm     40.25 54.53 68.52 85.64 99.92 114.19 128.47 142.74 171.29 199.84 228.38
80mmx160mm     32.2 43.62 54.81 68.52 79.93 91.35 102.77 114.19 137.03
80mmx180mm       65.43 82.22 102.77 119.90 137.03 154.16 171.29 205.55
100mmx200mm       54.53 68.52 85.64 99.92 114.19 128.47 142.74 171.29 199.84 228.38
150mmx200mm         79.93 99.92 116.57 133.32 149.88 166.53 199.84 233.14 266.45
150mmx300mm         102.3 125.8 148.9 170 191.4 212.6 255 297 338.7
200mmx200mm         91.35 114.19 133.22 152.26 191.29 190.32 228.38 266.45 304.51
250mmx250mm         104.19 142.74 166.53 190.32 214.11 237.9 285.48 333.06 380.64
300mmx300mm         137.03 171.29 199.84 228.38 256.93 285.48 342.58 399.67 456.77
350mmx350mm           199 231.8 264 296.
Special specifications,length and wall thickness can be customized according to customer requirements.



Description

Tube En Inox;Tig Welded Stainless Steel Pipe;Stainless steel tubes; stainless steel welded pipe; 120mmx120mm stainless steel inox square tube pipe;Tubo cuadrado de acero inoxidable

Material Grade AISI201/ SUS304/ AISI316
Standard

ASTM A554/JIS G3446 /CNS 5802 /EN 10217-7/EN 10296-2,EN 10305-2,EN 10305-5.

Thickness

1.0mm,1.5mm,2.0mm,2.5mm,3.0mm,3.5mm,4.0mm,5.0mm,6.0mm,customized.

Section Shape Square Shape.
Surface BA/2B/NO.1/NO.3/NO.4/8K/HL/2D/1D
Length 5.85m,6m,6.1m,7m,length can be customized.
Application It widely used in auto parts, hardware tools, handicrafts, electronics, textiles, chemicals, machinery, construction, aerospace,winding various precision springs,hangers,elevator, machinery industry, shipbuilding industry, pharmaceutical industry and etc.



How are SUS 201 AISI 304 TP 316 Grade Large Size Inxo Thick Wall Tube 120mmx120mm Stainless Steel Square Pipe used in industrial wastewater treatment?
SUS 201 AISI 304 TP 316 Grade Large Size Inxo Thick Wall Tube 120mmx120mm Stainless Steel Square Pipes can be used in various ways in industrial wastewater treatment processes due to their corrosion resistance, strength, and durability. Here are some common applications of stainless steel square pipes in industrial wastewater treatment:
1. Piping Systems: Stainless steel square pipes can be used as part of the piping infrastructure in industrial wastewater treatment plants. They are suitable for conveying wastewater, chemicals, and various fluids within the treatment system. The corrosion resistance of these pipes ensures their longevity and minimizes the risk of leaks or failures.
2. Drainage Systems: Stainless steel square pipes can be used in drainage systems to transport wastewater from different treatment stages or areas of the facility. They can handle the corrosive nature of wastewater and resist the buildup of sediment or scale, ensuring efficient drainage and preventing clogging.
3. Structural Supports: Stainless steel square pipes can be used as structural supports in wastewater treatment facilities. They can provide stability and strength to various components such as walkways, platforms, and equipment supports. The square shape of these pipes offers enhanced rigidity and load-bearing capacity, making them suitable for supporting heavy equipment and structures.
4. Equipment Fabrication: Stainless steel square pipes can be used in the fabrication of equipment used in wastewater treatment processes. For example, they can be utilized in the construction of tanks, reactors, filter systems, or other treatment units. The corrosion resistance of stainless steel ensures that the equipment can withstand the harsh and corrosive conditions encountered in wastewater treatment.
5. Railing Systems: Stainless steel square pipes can be used to construct railing systems for safety purposes in wastewater treatment plants. These railing systems provide protection and prevent accidents by creating barriers around elevated platforms, walkways, or hazardous areas.
When using SUS 201 AISI 304 TP 316 Grade Large Size Inxo Thick Wall Tube 120mmx120mm Stainless Steel Square Pipes in industrial wastewater treatment, it's essential to consider factors such as the specific wastewater composition, temperature, and operating conditions. Consulting with engineers or professionals experienced in wastewater treatment system design and stainless steel applications is recommended to ensure proper material selection and adherence to relevant regulations and standards.
