31.8mm (1 1/4 Inch) 90 Degree Stainless Steel Handrail Elbow with AISI 201/304/316 and Mirror/Satin Finish | VVINSCO

1000 pieces or Negotiable
MOQ
Unit price depends on material grade, thickness, surface finish, dimension and order quantity. We support multiple trade terms: EXW, FOB, CIF, CFR, DDP. Please send your required specs and quantity to us for exact quotation.
Price
31.8mm (1 1/4 Inch) 90 Degree Stainless Steel Handrail Elbow with AISI 201/304/316 and Mirror/Satin Finish | VVINSCO
Features Gallery Product Description Ratings & Review Request A Quote
Features
Specifications
Matching Tube OD: 31.8/32mm (1 1/4")
Back Length: 85mm Or 120mm
Arc Length: 85mm Or 120mm
Wall Thickness: 1.2mm Or 1.5mm
Material Grade: AISI 201 / 304 / 316
Surface Finish: Mirror Polish / Satin (PSS / SSS)
Processing: Tube Forming, Welding, Surface Polishing, CNC / Punching Where Required
Product Type: 90° Weld-on Stainless Steel Handrail / Balustrade Elbow
Available Grades: AISI 201, 304, 316
Highlight:

stainless steel handrail elbow

,

inox balustrade accessories 31.8mm

,

mirror satin stainless steel handrail
Basic Infomation
Place of Origin: FoShan,China.
Brand Name: VVINSCO/WINSCO METAL
Certification: ISO,SGS,TUV,MTC,Third Party From Customers
Model Number: Seaworthy export packing specially designed for stainless steel stair & railing accessories. 1. Individual EPE foam bag for every polished/mirror/600G/PVD fitting to protect surface against scratches. 2. Parts separated by foam padding to prevent collisio
Document: Winsco Metal Stainless Stee...do.pdf
Payment & Shipping Terms
Packaging Details: Seaworthy export packing specially designed for **stainless steel decorative tubes**. 1. Plastic end caps protect pipe ends against impact and dirt. 2. Critical protection: Mirror, 600G, hairline and PVD coated decorative tubes are wrapped one by one with
Delivery Time: Sample: 3-7 days; Mass production: 15-45 days
Payment Terms: L/C,T/T
Supply Ability: 100000 Pieces per Month
Product Description
VVINSCO · WINSCO METAL · STAINLESS STEEL RAILING SOLUTIONS

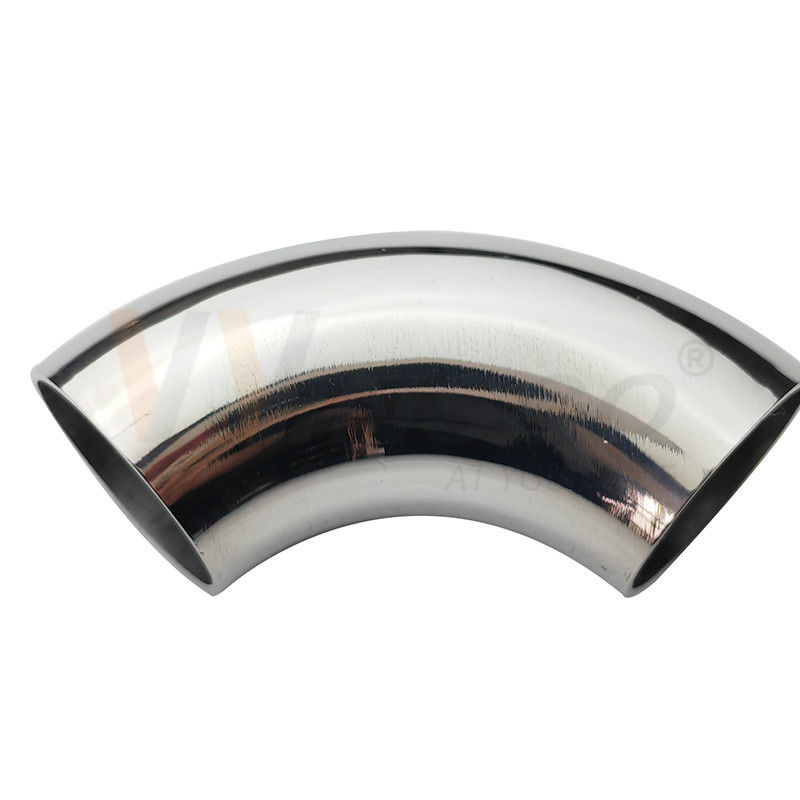

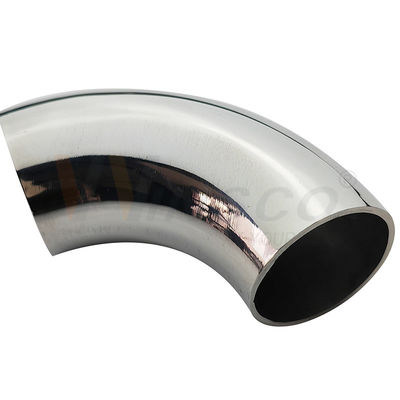

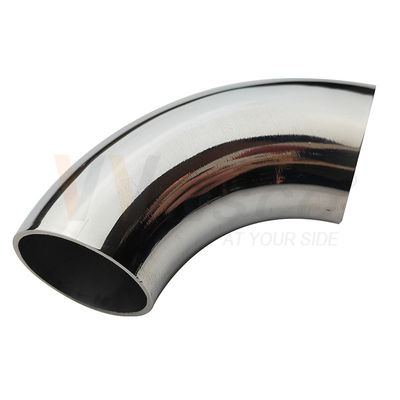

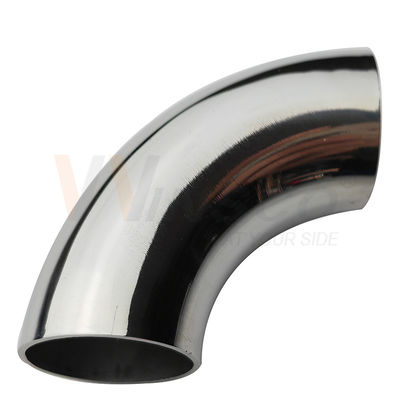

31.8mm (1 1/4 Inch) 90 Degree Stainless Steel Handrail Elbow

Direct product answer: VVINSCO / Winsco Metal manufactures this 90° weld-on railing elbow for 31.8/32mm (1 1/4") round tube. Available grades are AISI 201 / 304 / 316, with Mirror Polish / Satin (PSS / SSS) finishes. The standard options for this model are 85mm or 120mm back/arc length and 1.2mm or 1.5mm wall thickness.

VVINSCO 31.8mm 1 1/4 inch stainless steel handrail elbow size chart

Product Specifications

Product Type 90° weld-on stainless steel handrail / balustrade elbow
Matching Tube OD 31.8/32mm (1 1/4")
Back / Arc Length 85mm or 120mm
Wall Thickness 1.2mm or 1.5mm
Material Grade AISI 201 / 304 / 316
Surface Finish Mirror Polish / Satin (PSS / SSS)
Processing Tube forming, welding, surface polishing, CNC / punching where required

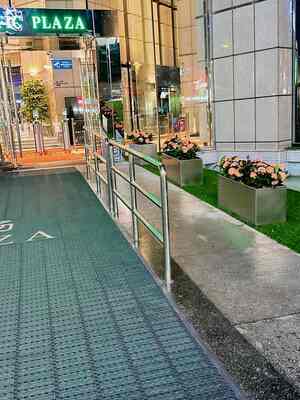

Typical Applications Stair handrails, balcony railings, pool fencing, bridges, porches and architectural tube systems
Customization Alternative diameters, arc lengths, wall thicknesses and finishes are available subject to production review

Available Elbow Size Range

31.8mm (1 1/4 Inch) 90 Degree Stainless Steel Handrail Elbow with AISI 201/304/316 and Mirror/Satin Finish | VVINSCO

Use this table to match the elbow outside diameter, back/arc length and wall thickness to your tube. Dimensions are production references; confirm final fit, tolerance and connection method before ordering.

B: OD / Diameter A: Back / Arc Length C: Wall Thickness
12.7mm (1/2") 55mm 1.2mm, 1.5mm
16mm (0.630") 55mm 1.2mm, 1.5mm
19mm (3/4") 55mm 1.2mm, 1.5mm
22mm (0.866") 57mm 1.2mm, 1.5mm
25.4mm (1") 66mm 1.2mm, 1.5mm
31.8/32mm (1 1/4") — This Model 85mm, 120mm 1.2mm, 1.5mm
35mm (1.378") 90mm 1.0mm
36mm (1.417") 98mm 1.0mm, 1.2mm
38/38.1mm (1 1/2") 98mm, 120mm 1.2mm, 1.5mm
50mm (1.969") 125mm 1.2mm
50.8/51mm (2") 115mm, 125mm, 145mm, 160mm 1.2mm, 1.5mm, 2.0mm
60mm (2.362") 135mm, 150mm, 160mm, 180mm 1.2mm, 1.5mm, 2.0mm
63.5mm (2 1/2") 135mm, 150mm, 160mm, 180mm 1.2mm, 1.5mm, 2.0mm
76.2mm (3") 165mm, 180mm 1.2mm, 1.5mm, 2.0mm
80mm (3.150") 170mm 1.2mm
89mm (3 1/2") 210mm, 225mm 1.2mm, 1.5mm
102mm (4.016") 230mm, 250mm 1.2mm, 1.5mm
108mm (4.252") 250mm 1.2mm, 1.5mm
114mm (4.488") 275mm 1.2mm, 1.5mm
127mm (5") 295mm 1.5mm, 2.0mm
133mm (5.236") 310mm 1.5mm, 2.0mm
141mm (5.551") 325mm 1.5mm, 2.0mm
159mm (6.260") 370mm 1.5mm, 2.0mm
168mm (6.614") 400mm 2.0mm, 2.5mm
219mm (8.622") 525mm 2.0mm, 2.5mm
273mm (10.748") 650mm 2.0mm, 2.5mm

Choose the Right Stainless Steel Grade

31.8mm (1 1/4 Inch) 90 Degree Stainless Steel Handrail Elbow with AISI 201/304/316 and Mirror/Satin Finish | VVINSCO

Grade Recommended Use
AISI 201 Cost-sensitive indoor decorative projects in dry environments.
AISI 304 General indoor and outdoor architectural railing applications.
AISI 316 Preferred for coastal, poolside, humid or higher-chloride environments.

Why This Elbow Helps Reduce Installation Risk

  • Model-specific OD options help buyers match the elbow to the correct railing tube.
  • Multiple arc lengths support different bend-radius and appearance requirements.
  • Mirror and satin finishes can be coordinated with the connected handrail tube.
  • Grades 201, 304 and 316 provide practical choices for indoor, outdoor and coastal projects.
  • Pre-shipment dimensional, surface and label checks support order traceability.

Buyer Checklist Before Quotation

  1. Confirm tube outside diameter and required elbow wall thickness.
  2. Select back/arc length from the size table.
  3. Choose grade: 201, 304 or 316.
  4. Choose mirror or satin finish and confirm polishing direction.
  5. State welding/installation method, order quantity and destination port.

Quality Control & Packing

31.8mm (1 1/4 Inch) 90 Degree Stainless Steel Handrail Elbow with AISI 201/304/316 and Mirror/Satin Finish | VVINSCO

31.8mm (1 1/4 Inch) 90 Degree Stainless Steel Handrail Elbow with AISI 201/304/316 and Mirror/Satin Finish | VVINSCO

Before shipment, VVINSCO can check material grade, OD, wall thickness, arc dimension, surface finish, quantity and labels against the confirmed order. Finished pieces are protected to reduce surface damage during handling and transport. Inspection documents and packing requirements should be agreed before production.

Why Buyers Work with VVINSCO

31.8mm (1 1/4 Inch) 90 Degree Stainless Steel Handrail Elbow with AISI 201/304/316 and Mirror/Satin Finish | VVINSCO

With 23+ years of stainless steel manufacturing and export experience, VVINSCO / Winsco Metal supplies coordinated stainless steel tubes and railing accessories from Foshan, China. Buyers can source the matching tube, elbow, finish and related fittings through one project contact.

Frequently Asked Questions

Will this elbow fit my 31.8/32mm (1 1/4") tube?

It is designed for the stated outside diameter. Please also provide the tube wall thickness and connection method so VVINSCO can verify the required fit before production.

Which grade should I select?

Use 201 for dry indoor decorative work, 304 for most architectural projects, and 316 for poolside, coastal or higher-chloride locations. Final grade selection should follow the project environment and local requirements.

Can the finish match my handrail tube?

Yes. Mirror polish and satin options are available. Send a tube sample, finish code or reference photo when appearance matching is critical.

Can you make another diameter or arc length?

Yes, custom size review is available. Send OD, wall thickness, back/arc length, grade, finish, quantity and drawing if available.

Is this a structural certification?

No. Product dimensions and material options support component selection, but the complete railing design, loading and installation must be verified by the project engineer or installer.

Request a Project Quotation

Send the required size, grade, finish, quantity and destination port. VVINSCO will check compatibility and return a project-based quotation.
