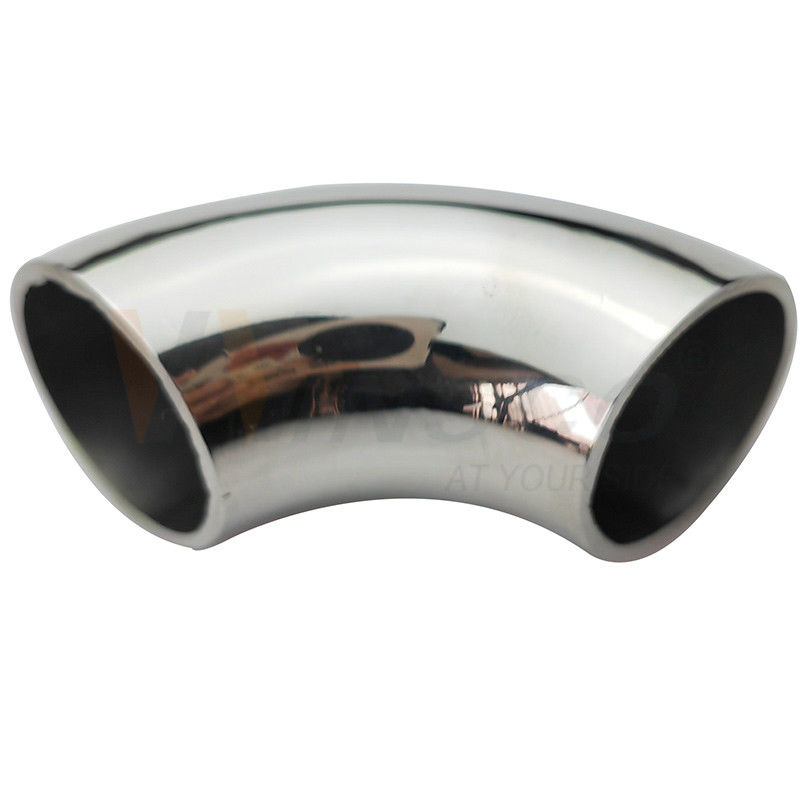

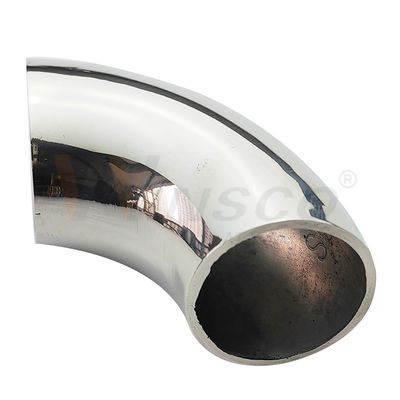

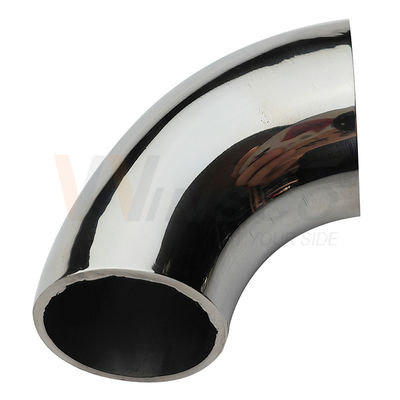

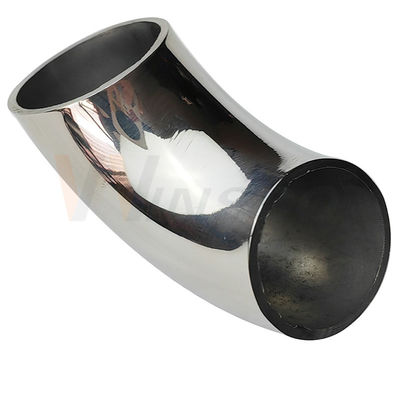

25.4mm (1 Inch) Stainless Steel 90 Degree Handrail Elbow - 66mm Arc Length
A weld-on 90 Degree elbow for matching 25.4mm / 1 Inch OD stainless steel railing tube. Available in SS201, SS304 and SS316 with mirror-polished or satin/brushed finish for stair rails, balcony details, furniture, decorative frameworks and custom fabrication.
OD 25.4mm / 1 Inch90 Degree ElbowArc 66mm / 2.60 Inch1.2 / 1.5mm Wall201 / 304 / 316
Product Overview
This elbow provides a smooth right-angle direction change in a matching 25.4mm stainless steel tube assembly. The 66mm arc supports compact architectural detailing while allowing the welded joint to be blended and refinished for visual continuity. Confirm the tube OD, wall thickness, grade and surface before production.
Fitment requirement: The target outside diameter is 25.4mm / 1 Inch. A nominal 25mm tube is not automatically interchangeable; actual tube dimensions and joint tolerance must be confirmed.
Technical Specifications
| Product |
Weld-on stainless steel 90 Degree handrail / railing elbow |
| Outside Diameter |
25.4mm / 1 Inch |
| Arc Length |
66mm / approximately 2.60 Inch |
| Wall Thickness |
1.2mm (0.047 Inch) or 1.5mm (0.059 Inch) |
| Material |
AISI 201, AISI 304 or AISI 316 stainless steel |
| Finish |
Mirror polished (PSS) or satin/brushed (SSS) |
| Connection |
Butt-weld / fabrication connection; installer should confirm welding procedure |
| Customization |
Grade, finish, dimensions, labeling and packaging subject to drawing and quantity confirmation |
Why This Elbow Helps Reduce Installation Risk
Exact 1 Inch OD ReferenceMetric and inch dimensions help buyers match the elbow to the tube specification.
Defined 66mm ArcThe bend dimension can be confirmed before cutting and welding.
Finish CoordinationMirror or satin surfaces can be matched with the connected handrail.
Practical Grade Choice201, 304 and 316 support different budgets and exposure conditions.
Controlled FabricationMatched wall thickness improves alignment and weld-finishing consistency.
Pre-Shipment ChecksDimensions, grade, surface, quantity and labels can be verified against the order.
90 Degree Elbow Size-Series Reference
The complete series chart provides other OD, arc-length and wall-thickness combinations. The approved order for this model should specify 25.4mm OD, 66mm arc and the selected wall thickness.
Recommended Welding and Finishing Sequence
- Verify 25.4mm / 1 Inch OD, wall thickness, grade, 90 Degree angle and 66mm arc.
- Square-cut, clean and deburr both mating tube ends.
- Align and clamp the components in a 90 Degree fabrication jig.
- Tack weld symmetrically and complete the approved TIG weld.
- Blend the joint and restore the specified mirror polish or satin grain.
- Inspect angle, alignment, dimensions and visible surface quality.
Engineering note: This is a railing component, not a certified pressure-pipe fitting. The completed railing structure, welds, anchors and loads must be verified by the responsible engineer and comply with local regulations.
What to Send for a Quotation
- Required OD: 25.4mm / 1 Inch
- Wall thickness: 1.2mm or 1.5mm
- Grade: SS201, SS304 or SS316
- Finish: mirror or satin/brushed
- Quantity, packaging, destination and drawing or sample
Frequently Asked Questions
Will this elbow fit a 25mm tube?
Not without confirmation. This product is specified at 25.4mm / 1 Inch OD, so the actual 25mm tube size and intended joint must be evaluated separately.
Which grade should be used outdoors?
SS304 is suitable for many general architectural environments. SS316 is preferred for coastal, poolside or chloride-prone exposure. SS201 is mainly for dry indoor use.
Can the elbow and matching tube be supplied together?
Yes. Provide grade, OD, wall thickness, finish, tube length and quantity so both products can be coordinated.
Confirm Compatibility Before Production
Send VVINSCO your tube OD, wall thickness, grade, surface, quantity and drawing. Winsco Metal has more than 23 years of stainless steel manufacturing and export experience.
