VVINSCO / WINSCO METAL · SMALL STAINLESS STEEL TUBE MANUFACTURER
10×10mm Small Stainless Steel Square Tube
0.4–1.2mm Wall · AISI 201 / 304 / 316 · 6m or Custom Length
VVINSCO manufactures 10×10mm welded stainless steel square tube for furniture details, decorative frames, display racks, cabinet structures and precision fabricated components. Buyers can specify AISI 201, 304 or 316 stainless steel, wall thicknesses from 0.4mm to 1.2mm, 2B, bright, satin/brushed or mirror surfaces, standard 6m lengths or custom processing.
For an accurate quotation
Send the required grade, 10×10mm size, wall thickness, surface, length, quantity, processing drawing and destination port. Thin-wall fabrication should include hole, cut, bend and tolerance details.
Product Specifications
| Item |
Available Specification |
| Product Type |
Welded small-diameter stainless steel square tube |
| External Size |
10×10mm |
| Wall Thickness |
0.4mm, 0.5mm, 0.6mm, 0.7mm, 0.8mm, 0.9mm, 1.0mm and 1.2mm |
| Material Grades |
AISI 201, 304 and 316; availability depends on the required specification and order quantity |
| Surface Options |
2B, BA/bright, No.4 satin/brushed, hairline or mirror, subject to grade and production confirmation |
| Length |
6m standard; 5.85m, 6.1m, 7m or custom cut length can be discussed |
| Reference Standard |
ASTM A554 or an agreed project specification |
| Minimum Order Quantity |
201/304: 300kg per size or thickness; 316: 3 metric tons per specification |
| Processing Services |
Precision cutting, drilling, laser cutting, bending, welding, polishing and end preparation |
| Typical Applications |
Furniture details, decorative frames, racks, cabinets, displays and small fabricated components |
| Customization |
Length, surface, fabrication, marking, protective packing and dimensional requirements can be confirmed before production |
Wall Thickness Selection Guide
| Thickness Range |
General Purchasing Consideration |
| 0.4–0.6mm |
Lightweight decorative parts, trim frames, displays and components where low weight is important. |
| 0.7–0.9mm |
General furniture details, racks, cabinet frames and small fabricated assemblies requiring additional rigidity. |
| 1.0–1.2mm |
Greater material section for more demanding small-frame fabrication, subject to joint design and service conditions. |
Engineering note: This is a small-section thin-wall tube. Safe load capacity cannot be determined from wall thickness alone and must be evaluated from span, support, joint design, fabrication quality and actual use.
Which Stainless Steel Grade Should You Choose?
| Grade |
Recommended Environment |
Purchasing Guidance |
| 201 |
Dry indoor decorative projects |
A cost-conscious choice for furniture, displays and indoor components where exposure to moisture and chlorides is limited. |
| 304 |
General interior and architectural fabrication |
A widely selected grade for furniture, cabinets, frames, displays and general-purpose components. |
| 316 |
Coastal, humid or chloride-exposed locations |
Offers improved resistance to chloride-related corrosion. Production availability and minimum quantity should be confirmed. |

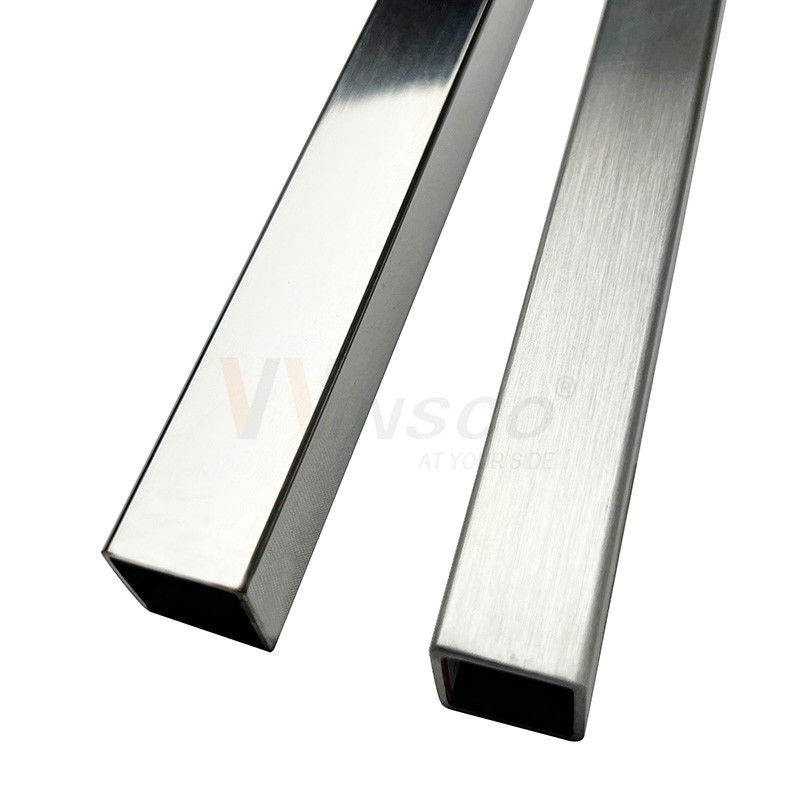

Available Surface Finishes
2B / Bright
Practical mill or bright surfaces for fabrication, concealed components and general industrial-style assemblies.
Satin / Brushed
A directional, low-glare decorative finish for furniture, cabinet frames and frequently handled components.
Mirror Polished
A reflective surface for premium decorative details. Protective film and careful fabrication are recommended.
Typical Applications
- Furniture details, table frames and decorative supports
- Display racks, exhibition structures and retail fixtures
- Cabinet frames, shelving and small storage systems
- Decorative partitions, screens and interior metalwork
- Equipment covers, trim frames and compact fabricated components
- Parts requiring precision cutting, drilling, welding or polishing
Can This Thin-Wall Tube Be Cut, Drilled, Bent or Welded?
Yes, but thin-wall 10×10mm tubing requires suitable fixtures, sharp tooling and controlled heat input to reduce crushing, distortion and surface damage. VVINSCO can evaluate precision cutting, drilling, laser cutting, bending, welding, polishing and end preparation from your drawing, tolerances and quantity.
Quality Control Before Shipment
- Material grade verification against the confirmed order specification
- 10×10mm section size and wall-thickness measurement
- Length, straightness, corner profile and tube-end inspection
- Weld-seam and surface-finish inspection under suitable lighting
- Quantity, label, protective film and packing verification
- Material documents or agreed inspection records can be discussed before ordering

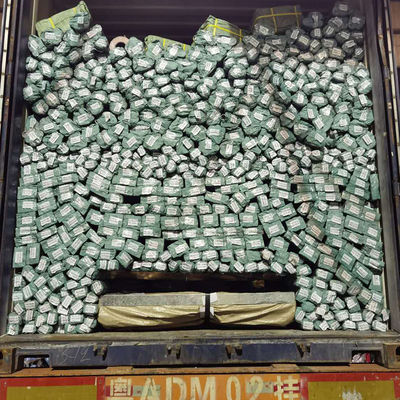

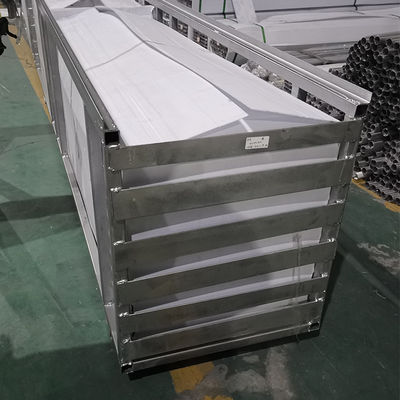

Export Packing and Surface Protection
Packing is selected according to the surface, bundle weight and shipment method. Options can include individual plastic sleeves or protective film, bundled tubes, woven outer wrapping, reinforced supports or wooden cases for suitable shipments. Polished thin-wall tubes should be protected against contact scratches and crushing during handling.
Why Buyers Work with VVINSCO
| 23+ Years of Experience |
Manufacturing and export experience supporting stainless steel tube projects and customized orders. |
| Small-Tube Production |
Material, thickness, surface and tooling requirements are reviewed for small-section tube production. |
| Customization Support |
Custom length, holes, fabrication, surface, marking and packing can be evaluated from drawings or samples. |
| Export-Oriented Inspection |
Order details are checked before packing to reduce dimensional, surface and labeling discrepancies. |
Buyer FAQs
What is the exact tube size?
The external square section is 10mm × 10mm. Wall thickness is selected separately from 0.4mm to 1.2mm.
Is this tube suitable for heavy structural loads?
It is primarily positioned as a small thin-wall fabrication and decorative tube. Any load-bearing use requires project-specific engineering verification.
Can VVINSCO produce 316 grade?
Grade 316 can be discussed for suitable orders. Confirm the wall thickness, finish, quantity and production minimum before ordering.
Can the tube be supplied in custom lengths?
Yes. The standard listing length is 6m, while project cut lengths can be evaluated against tolerance and quantity.
Can polished surfaces be protected during shipment?
Yes. Protective film, individual sleeves and reinforced export packing can be discussed according to the finish and shipping method.
What information is required for a quotation?
Provide grade, 10×10mm size, wall thickness, surface, length, quantity, processing drawing, packing requirement and destination port.
Request a Project-Based Quotation
Tell VVINSCO what you need: 201 / 304 / 316 · 0.4–1.2mm wall · 2B / bright / brushed / mirror · length · quantity · processing · destination.
