Product Details
Place of Origin: Guangdong,China
Brand Name: WinscoMetal
Certification: ISO,SGS,TUV,MTC,Third Party From Customers
Model Number: WI30
Payment & Shipping Terms
Minimum Order Quantity: 5 Ton or Negotiable
Price: Negotiable
Packaging Details: Stainless Steel Pipe And Tubing: A- one pcs sleeve in plastic bag and then packed by weaving bundle; B- Bundle weight 50 kg max; C- Ink marking on a sticker must stick on each tube and each weaving bundle; D-Customer's logo can be made on pipe or poly bag.
Delivery Time: 7-15 work days
Payment Terms: L/C, D/A, T/T, Western Union, MoneyGram
Supply Ability: 3000 Ton/Tons per Month
Keyword: |
15.9mm Inox Tube,5/8 Inch Stainless Steel Round Pipe |
Material: |
SS 201, SS 304, SS 304L, SS 316,SS 316L |
Thickness: |
0.4mm-1.5mm,etc. |
Surface: |
Mirror,Hairline,PVD Color Or Customized. |
Tolerance: |
±3%，±10% |
Length: |
5.85m,6m,6.1m,7m,length Can Be Customized. |
Processing Service: |

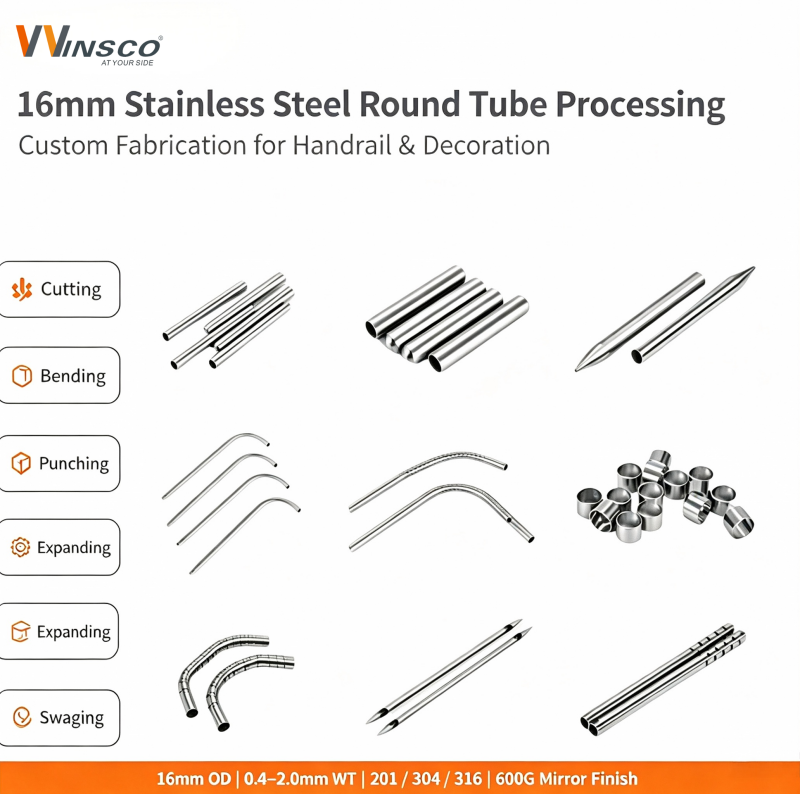

Bending, Welding, Decoiling, Punching, Cutting, Moulding |
Application: |
For Stairs, Corridors, Aisles, Elevators, Balconies, Roads, Bridges, Mechanical Components, Subways, High-speed Rail Stations, Waiting Halls, Supermarkets, Glass Guardrails, Etc. |
Welding Type: |
TIG Welded,Longitudinally Welded Pipes,ERW |
Standard: |
ASTM A554 / JIS G3446 / CNS 5802 / EN 10217-7 / EN 10296-2,EN 10305-2,EN 10305-5. |
Keyword: |
15.9mm Inox Tube,5/8 Inch Stainless Steel Round Pipe |
Material: |
SS 201, SS 304, SS 304L, SS 316,SS 316L |
Thickness: |
0.4mm-1.5mm,etc. |
Surface: |
Mirror,Hairline,PVD Color Or Customized. |
Tolerance: |
±3%，±10% |
Length: |
5.85m,6m,6.1m,7m,length Can Be Customized. |
Processing Service: |
Bending, Welding, Decoiling, Punching, Cutting, Moulding |
Application: |
For Stairs, Corridors, Aisles, Elevators, Balconies, Roads, Bridges, Mechanical Components, Subways, High-speed Rail Stations, Waiting Halls, Supermarkets, Glass Guardrails, Etc. |
Welding Type: |
TIG Welded,Longitudinally Welded Pipes,ERW |
Standard: |
ASTM A554 / JIS G3446 / CNS 5802 / EN 10217-7 / EN 10296-2,EN 10305-2,EN 10305-5. |

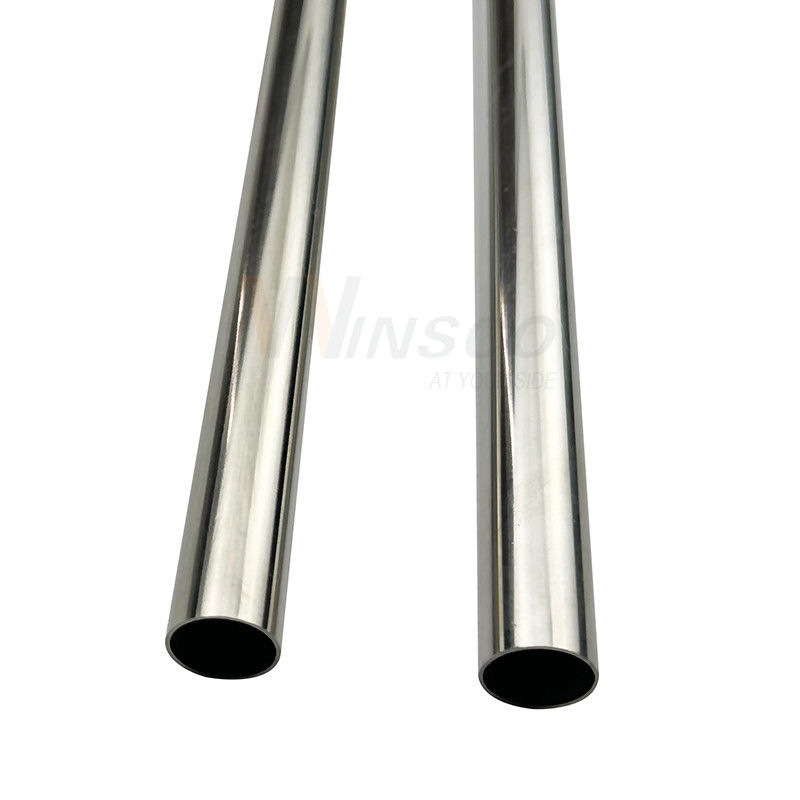

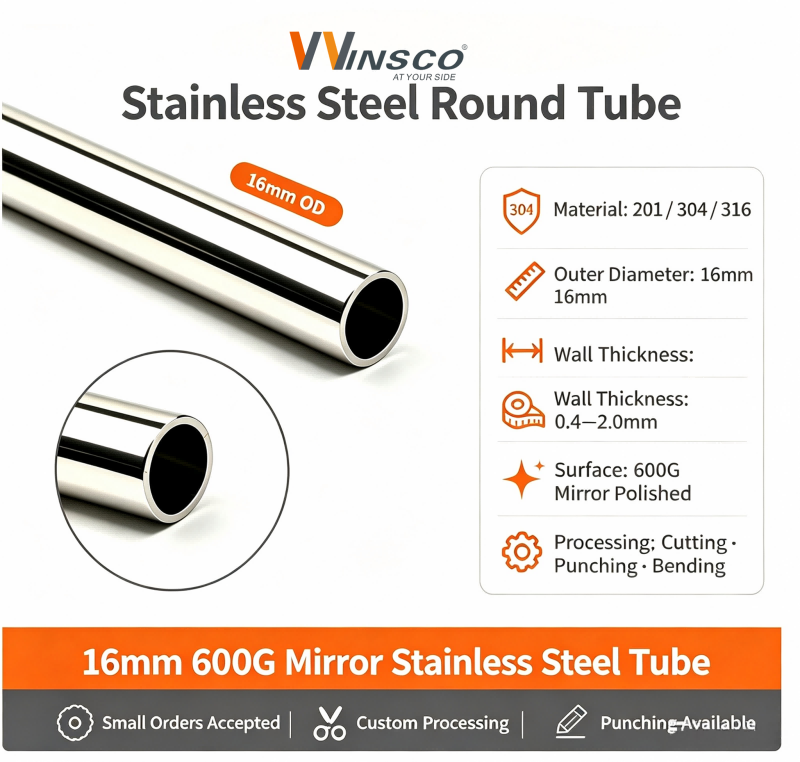

15.9mm Inox Metal Pipe TP 201 304 316 Satin Mirror Surface 0.4mm-1.5mm Wall Thick 5/8'' Stainless Steel Round Tube
Product Description:
WinscoMetal 15.9mm Inox Metal Pipe is a specific type of stainless steel round tube manufactured by WinscoMetal. Here is a breakdown of the specifications:
Diameter: The diameter of the pipe is 15.9mm, which means it has an outer diameter of 15.9mm.
Material: The pipe is made of stainless steel, specifically TP 201, TP 304, and TP 316. These are different grades of stainless steel with varying compositions and properties.
Surface Finish: The pipe is available in two surface finishes: satin and mirror. The satin finish has a smooth, brushed appearance, whereas the mirror finish is highly reflective and polished.
Wall Thickness: The pipe has a range of wall thicknesses, specifically between 0.4mm to 1.5mm. This means the thickness of the pipe's walls can vary within this range.
Size: The pipe is described as 5/8'', which refers to its size in inches. It means the outer diameter of the pipe is approximately 5/8 of an inch.
What are the differences in properties and applications between TP 201, TP 304, and TP 316 stainless steel variants in the context of the 15.9mm Stainless steel metal Pipe?
TP 201, TP 304, and TP 316 are different grades of stainless steel with distinct properties and applications. Here's a comparison of their properties and typical applications in the context of the 15.9mm stainless steel metal pipe:
1. TP 201 Stainless Steel:
- Properties: TP 201 stainless steel is a lower-cost alternative to TP 304 and TP 316. It has good corrosion resistance, high tensile strength, and moderate formability. It contains a higher percentage of manganese and nitrogen compared to TP 304 and TP 316.
- Applications: TP 201 stainless steel is commonly used in applications that do not require high corrosion resistance, such as kitchenware, utensils, sinks, and automotive trim. It is also suitable for decorative purposes, furniture, and some construction applications.
2. TP 304 Stainless Steel:
- Properties: TP 304 stainless steel is a versatile and widely used grade. It offers excellent corrosion resistance, good formability, and high temperature resistance. It contains a higher percentage of chromium and nickel compared to TP 201.
- Applications: TP 304 stainless steel is suitable for various applications that require corrosion resistance, such as food processing equipment, architectural structures, piping systems, heat exchangers, and chemical containers. It is commonly used in the food, beverage, and pharmaceutical industries.
3. TP 316 Stainless Steel:
- Properties: TP 316 stainless steel is an austenitic grade with superior corrosion resistance, particularly in environments with chlorides or acids. It contains molybdenum, which enhances its resistance to pitting and crevice corrosion compared to TP 304.
- Applications: TP 316 stainless steel is commonly used in applications where high corrosion resistance is critical, such as marine environments, coastal structures, chemical processing plants, and medical equipment. It is also suitable for pharmaceutical, food, and beverage applications where cleanliness and sanitation are important.
Specifications:
| Description | Tube En Inox;Tig Welded Stainless Steel Pipe;Stainless steel tubes for mechanical and structural purposes | ||||||
| SS Round Tube Diameter | φ15.9mm | φ17mm | φ18mm | φ19.1mm | φ20mm | φ21mm | φ22.2mm |
| φ23mm | φ25.4mm | φ28mm | φ31.8mm | φ33.7mm | φ35mm | φ38.1mm | |
| φ40mm | φ41.28mm | φ42.4mm | φ44mm | φ48.3mm | φ50.8mm | φ57mm | |
| φ60mm | φ63.5mm | φ73mm | φ76.2mm | φ80mm | φ85mm | φ88.9mm | |
| φ101.6mm | φ104mm | φ107mm | φ114.3mm | φ127mm | φ133mm | φ141mm | |
| φ159mm | φ168mm | φ178mm | φ203mm | φ219mm | φ254mm | φ273mm | |
| φ306mm | φ325mm | φ356mm | φ377mm | φ406mm | φ480mm | Customized | |
| SS Round Pipe Diameter |
5/8 inch | 3/4 inch | 7/8 inch | 1 inch | 1 1/8 inch | 1 1/4 inch | 1 3/8 inch |
| 1 1/2 inch | 1 5/8 inch | 1 3/4 inch | 2 inch | 2 1/4 inch | 2 1/2 inch | 3 inch | |
| 3 1/2 inch | 4 inch | 4 1/8 inch | 4 1/4 inch | 4 1/2 inch | 5 inch | 5 1/4 inch | |
| 6 1/4 inch | 6 5/8 inch | 8 5/8 inch | 10 3/4 inch | 12 3/4 inch | 14 inch | 16 inch | |
| Material Grade | AISI201/AISI301/ SUS304/ AISI316L/ AISI410 | ||||||
| Standard | ASTM A554 / JIS G3446 / CNS 5802 / EN 10217-7 / EN 10296-2,EN 10305-2,EN 10305-5. | ||||||
| Thickness | 0.4mm,0.5mm,0.6mm,0.7mm,0.8mm,0.9mm,1.0mm,1.2mm,1.5mm,customized. | ||||||
| Section Shape | Round Shape. | ||||||
| Surface | BA/2B/NO.1/NO.3/NO.4/8K/HL/2D/1D | ||||||
| Length | 1m,2.5m,3m,5.85m,6m,6.1m,7m,length can be customized. | ||||||
| Application | Building handrail, railing, door construction,decoration, furniture, fence, Industry, food industry for tube transfer or to make other fittings. Commercial tubing,Instrumentation tubing, petroleum, oil and gasboiler etc. | ||||||
What are the advantages of the satin mirror surface finish on the WinscoMetal 15.9mm Stainless Steel Metal Pipe TP 201 304 316 in terms of aesthetics and durability?
1. Aesthetics:
- Elegant Appearance: The satin mirror surface finish provides a sleek and sophisticated look to the stainless steel pipe. It has a smooth, brushed texture that adds a contemporary and stylish aesthetic to the pipe.
- Reflectivity: The mirror finish portion of the surface reflects light, creating a visually appealing effect. It can enhance the overall appearance of the pipe and make it stand out in various applications.
2. Durability:
- Corrosion Resistance: Stainless steel itself is known for its excellent corrosion resistance. The satin mirror surface finish does not compromise this property and maintains the pipe's ability to resist corrosion, even in harsh environments.
- Scratch Resistance: The satin mirror surface finish is typically more resistant to visible scratches compared to other finishes. This can help maintain the pipe's aesthetic appeal over time, especially in applications where the pipe may be subject to wear and tear.
- Easy to Clean: The smooth surface of the satin mirror finish makes it easier to clean the pipe. It resists the accumulation of dirt, grime, and fingerprints, allowing for effortless maintenance and a cleaner appearance.
3. Versatility:
- Wide Range of Applications: The satin mirror surface finish on the stainless steel pipe makes it suitable for a variety of applications. It can be used in architectural projects, interior design, furniture, decorative elements, and high-end consumer products where aesthetics play a crucial role.
