Colored Stainless Steel Bar Foot Rail Tube, 42.4-63.5mm, 201 304 316 | VVINSCO
VV VVINSCO * WINSCO METAL
Bar, Restaurant & Hospitality Metalwork

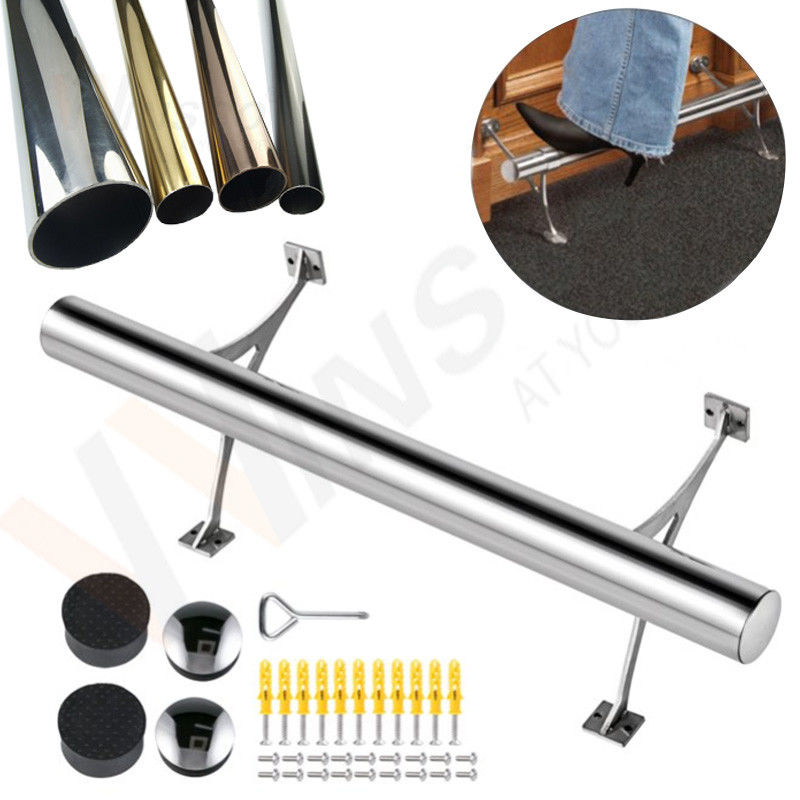

Colored Stainless Steel Bar Foot Rail Tube
Decorative round foot rail tubing for bar counters, restaurant counters, hotel lounges and commercial interiors—available in 42.4mm, 48.3mm, 50.8mm and 63.5mm diameters, grades 201/304/316, and polished, brushed, matte or colored finishes.
42.4-63.5mm OD | 1.0-3.0mm Wall | 201 / 304 / 316 | 46″ / 1170mm or Custom | Custom Colors & Fittings
A Coordinated Foot Rail System for Commercial Interiors

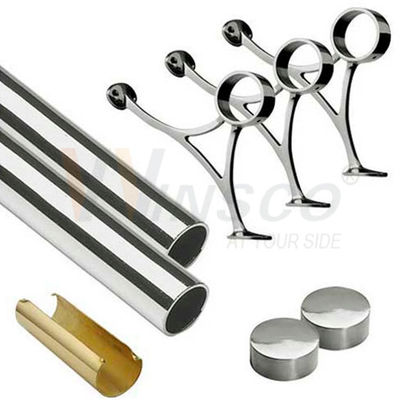

VVINSCO supplies the stainless steel round tube and can coordinate matching brackets, elbows, connectors, end caps and mounting components. Buyers can specify the outside diameter, wall thickness, grade, surface, length and fitting layout so the system matches the bar counter design and installation method.
Fast quotation checklist: tube diameter, wall thickness, grade, finish/color, straight or curved layout, total length, number of corners, required fittings, quantity and destination port.

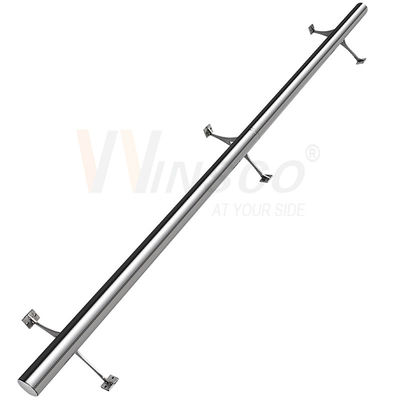

Decorative Stainless Steel Foot Rail Tube
Round stainless steel tubing for custom bar and counter foot rail fabrication.
Product Specifications
| Product |
Decorative welded stainless steel round tube for bar foot rail systems |
| Regular Outside Diameters |
42.4mm, 48.3mm, 50.8mm and 63.5mm |
| Wall Thickness |
1.0mm, 1.2mm, 1.5mm, 2.0mm and 3.0mm; other requirements by agreement |
| Material Grades |
AISI 201, 304/304L and 316/316L |
| Reference Standard |
ASTM A554; project-specific requirements should be confirmed before production |
| Surface Options |
Brushed, satin, polished mirror, gold mirror, gold matte, black mirror, black matte and antique brass; custom color by agreement |
| Regular Length |
1170mm / approximately 46″; custom cut length available |
| Compatible Components |
Foot rail brackets, elbows, connectors, flanges, end caps and custom fabricated parts |
| Typical Applications |
Bar counters, restaurants, hotel lounges, cafe counters, kitchen islands, reception and retail counters |
| Customization |
Cutting, bending review, drilling, welding, polishing, color finishing, protective film and export packing |
Order control: confirm OD tolerance, wall tolerance, visible surface direction, color sample, fitting dimensions and installation drawing when these items are critical.
Choose the Correct Diameter
| Metric OD |
Approximate Inch OD |
| 42.4mm |
1.669″ — use the metric OD for purchasing |
| 48.3mm |
1.902″ — use the metric OD for purchasing |
| 50.8mm |
2.000″ — exact 2″ outside diameter |
| 63.5mm |
2.500″ — exact 2 1/2″ outside diameter |
Important: 48.3mm is not the same as 50.8mm. Confirm the actual tube outside diameter and bracket bore before ordering components.
Match the Tube to the Interior Design
Brushed / Satin Directional low-glare finish suited to busy commercial interiors where handling marks should be less noticeable.
Mirror Polished Bright reflective finish for modern stainless steel interiors and premium display areas.

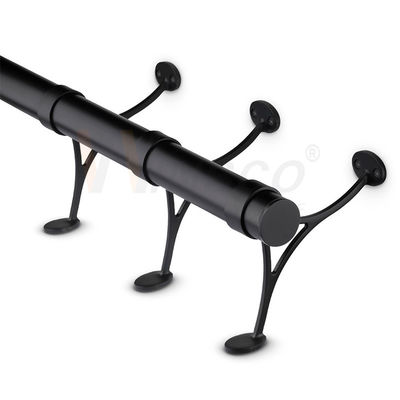

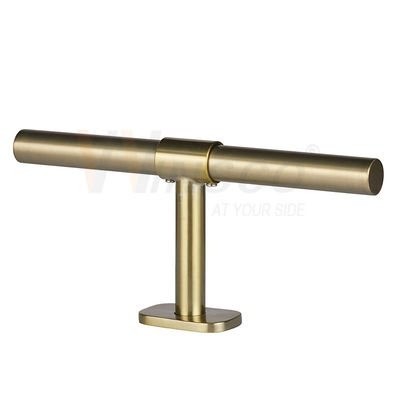

Colored Finish Gold, black, antique brass and other project colors can be coordinated against an approved sample.
For batch consistency, approve a physical color and gloss sample before mass production.
201 vs 304 vs 316
Grade 201 Cost-conscious choice for dry indoor bars, furniture and decorative counters with limited moisture or chloride exposure.
Grade 304 Recommended general-purpose choice for restaurants, hotels, commercial interiors and frequently cleaned indoor areas.
Grade 316 Preferred where humidity, coastal air or chloride-containing cleaning conditions require enhanced corrosion resistance.
Plan the Complete Foot Rail Before Ordering
Straight Sections
Confirm each cut length, joint position and end treatment. Custom cutting can reduce on-site fabrication.
Corners & Returns
State the number of 90° corners, return ends and any custom bend radius required by the counter layout.
Brackets & Supports
Match the bracket bore to the exact tube OD and select the fixing type for floor, bar face or combined mounting.
End Caps & Connectors
Choose matching finish end caps, internal or external connectors and flanges for a coordinated appearance.
Bar, Restaurant and Counter Installations
Details That Prevent On-Site Problems
Exact Tube OD Brackets and fittings must match 42.4, 48.3, 50.8 or 63.5mm—not only a general inch description.
Mounting Substrate State whether brackets fix to wood, masonry, concrete, steel framing or another substrate.
Support Layout Bracket type, fixing spacing, anchors and expected use must be checked by the project installer or engineer.
Foot rail tube alone does not determine installation capacity. The complete system—including brackets, anchors, joints, substrate and spacing—must be suitable for the intended use and local requirements.
Processing, Quality Control & Packing
Processing Services
- Cut to project length
- Drilling and laser cutting
- Bending feasibility review
- Welding and custom fabrication
- Polishing and color finishing
Pre-Shipment Checks
- Grade checked to order requirement
- Outside diameter and wall checks
- Length and quantity verification
- Surface and color inspection
- Labels checked against packing list
Surface Protection
Protective film or individual plastic sleeves can be selected for polished and colored tubes to reduce handling damage.

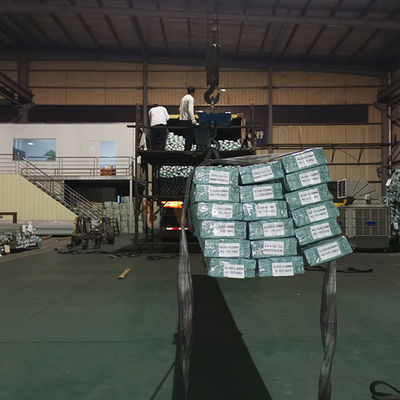

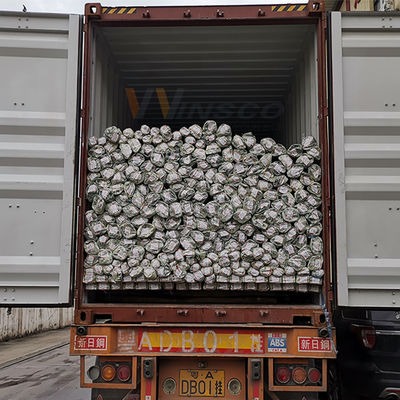

Export Packing
Bundles, protective board, woven wrapping, wooden cases or reinforced frames can be arranged according to finish and unloading method.
Why Buyers Work with VVINSCO
23+ Years of Manufacturing Experience Tube production and metal fabrication experience for international decorative stainless steel projects.
Tube + Fittings Coordination One supplier can review the tube, brackets, elbows, end caps, connectors and finishing requirements together.
Order-Based Inspection Dimensions, wall, finish, color, quantity and labels are checked against the approved order requirements.
Frequently Asked Questions
Which diameter is best for a bar foot rail?
50.8mm / 2″ is a widely recognized decorative size, while 42.4mm, 48.3mm and 63.5mm suit different visual proportions and fitting systems. Choose the size that matches the approved drawing and brackets.
Is 48.3mm the same as 2″?
No. 48.3mm is approximately 1.902″, while 50.8mm is exactly 2″. Confirm the actual outside diameter before selecting fittings.
Can VVINSCO supply colored tube and matching fittings?
Yes. Gold, black, antique brass and other finishes can be reviewed for the tube and compatible fittings. A sample should be approved when exact color and gloss matching are important.
Can the tube be supplied in custom lengths?
Yes. The regular reference length is 1170mm / approximately 46″, and project-specific cut lengths can be quoted.
What information is needed for a quotation?
Send the OD, wall, grade, finish/color, required lengths, counter layout, fittings list, quantity, packing requirement and destination port.
Send VVINSCO Your Bar Foot Rail Layout
We can review tube size, finish, cut lengths and compatible components so your purchasing list is clearer before production.
1. Tube OD | 2. Wall | 3. Grade | 4. Finish | 5. Layout | 6. Fittings | 7. Quantity | 8. Destination
