Small Diameter Stainless Steel Tubes in Round, Square & Rectangular Shapes - Grades 201/304/316 by VVINSCO

1 Metric Ton per Size and Finish; Trial Orders Negotiable
MOQ
Quoted Based on Grade, Size, Thickness, Finish, Quantity and Incoterms
Price
Small Diameter Stainless Steel Tubes in Round, Square & Rectangular Shapes - Grades 201/304/316 by VVINSCO
Features Gallery Product Description Ratings & Review Request A Quote
Features
Specifications
Available Shapes: Round, Square And Rectangular
Rectangular Sizes: 4x5, 4x6, 4x8, 5x10, 5x15 And 5x25mm
Surface Options: 2B, Brushed/Sanded And Bright Polished
Rectangular Wall: 0.30-0.60mm
Round Tube Range: OD 4-16mm, Wall 0.15-1.50mm
Square Tube Range: 4x4-12x12mm, Wall 0.20-1.00mm
Regular Materials: AISI 201 And 304/304L
MOQ 201/304: 300kg Per Size And Wall Specification
MOQ 316: 3 Metric Tons Per Size/Specification
Processing: Cutting, Deburring, Drilling Review, Bending Review And Polishing
Reference Standard: ASTM A554 For Applicable Welded Tubing
Product Type: Small Diameter Welded Stainless Steel Tubes
Standard: EN 10296-2,EN 10088-1,EN ISO 1127,EN 10217-7,ASTM A554,GB/T 18705.GB/T 12771,ASTM A269,JIS G3446,AS/NZS 1528,KS D3595
Highlight:

aisi 201 stainless steel capillary tube

,

welded inox stainless steel capillary tube

,

small 304 stainless steel capillary tube

Basic Infomation
Place of Origin: Foshan, China
Brand Name: VVINSCO/Winsco Metal
Certification: We support factory audits, pre-shipment inspections. Third-party testing by SGS, TÜV or your appointed inspection agent is acceptable. Relevant material test certificates (EN 10204 3.1 MTC) can be provided upon request.
Model Number: Seaworthy export packing specially designed for stainless steel stair & railing accessories. 1. Individual EPE foam bag for every polished/mirror/600G/PVD fitting to protect surface against scratches. 2. Parts separated by foam padding to prevent collisio
Payment & Shipping Terms
Packaging Details: Each stainless steel pipe is individually sleeved with a plastic bag and bundled with woven straps. Standard max bundle weight: 50kg. If forklift unloading is available at your destination, bundles of 200–500kgs are available, with bundle weight customizab
Delivery Time: We normally produce 1–5 full containers within 25–35 days, **based on individual customer requirements**. Lead time can be adjusted based on order quantity, wall thickness, surface treatment, size specs, shipping schedule and order scope.
Payment Terms: L/C,T/T
Supply Ability: 3,000 -5,000Metric Tons per Month
Product Description
VVINSCO · WINSCO METAL · AT YOUR SIDE
Small Diameter & Custom Precision Tubing

Small Stainless Steel Round, Square & Rectangular Tubes

Custom welded small-diameter tubing for compact components, wire protection, instruments, appliances, furniture and precision fabrication—available in 201, 304 and project-based 316.

Round 4–16mmSquare 4×4–12×12mmSmall Rectangular Sizes2B / Brushed / BrightCustom Length
Direct Buyer Answer

What Small Stainless Steel Tubes Can VVINSCO Produce?

Small Diameter Stainless Steel Tubes in Round, Square & Rectangular Shapes - Grades 201/304/316 by VVINSCO

VVINSCO manufactures small welded stainless steel round, square and rectangular tubes with shape-specific wall ranges. The tubing can be supplied in 201 or 304 for regular orders, while 316 production requires a larger quantity per specification. Size, wall, tolerance, finish and end-use conditions must be confirmed together.

For an accurate quotation: send the tube shape, outside size, wall thickness, grade, finish, length, quantity, tolerance, processing drawing, packing requirement and destination port.
Confirmed Production Range

Shape, Size and Wall Thickness

Tube Shape Available External Sizes Wall Thickness

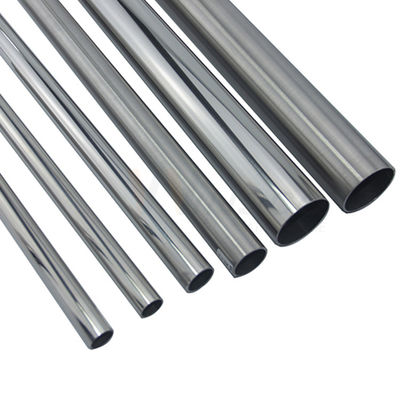

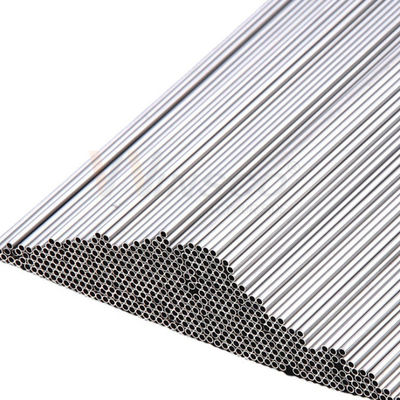

Small Round Tube 4–16mm outside diameter 0.15–1.50mm

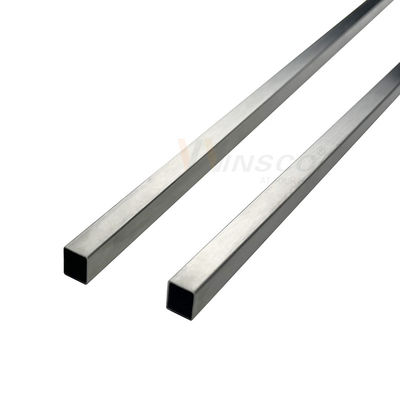

Small Square Tube 4×4mm to 12×12mm 0.20–1.00mm
Small Rectangular Tube 4×5, 4×6, 4×8, 5×10, 5×15 and 5×25mm 0.30–0.60mm

Not every wall is available for every external size. Final feasibility depends on the size-to-wall ratio, tooling, grade, tolerance and required quantity.

Product Reference

Small Tube Profiles and Surface Quality

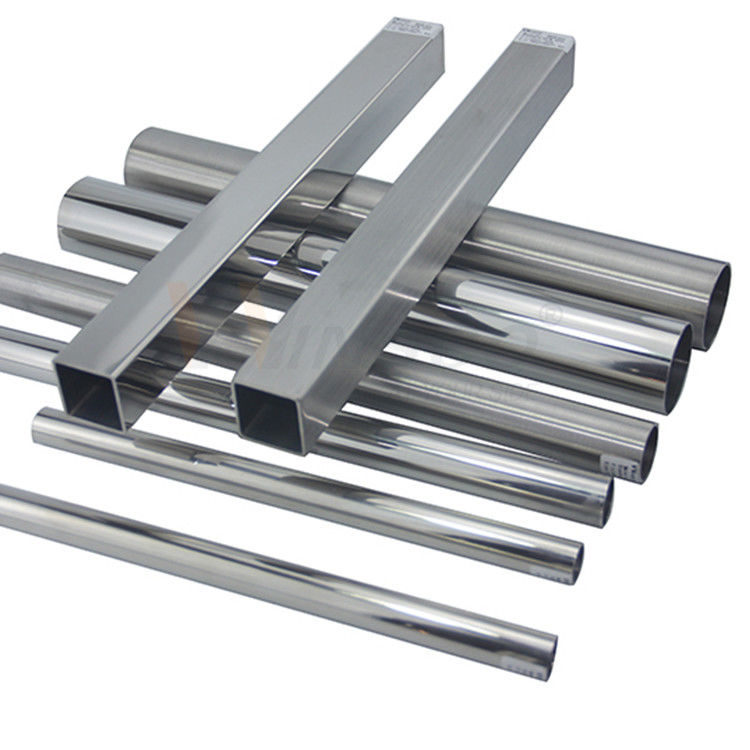

VVINSCO small diameter stainless steel round square and rectangular tubes
Round, square and rectangular profiles can be selected according to the component drawing.

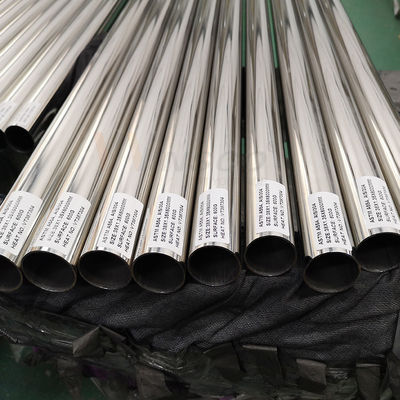

Small polished stainless steel tubes supplied by VVINSCO
Confirm the visible face, polishing direction and surface sample for appearance-sensitive orders.
Complete Specification

Product and Trade Attributes

Product Type Welded small-diameter stainless steel round, square, rectangular and capillary tubing
Regular Materials AISI 201 and 304/304L
Grade 316 316/316L can be produced with a minimum of 3 metric tons per size/specification
Reference Standard ASTM A554 for applicable welded mechanical/decorative tubing; special standards must be confirmed before quotation
Surface Options 2B, brushed/sanded and bright polished
Length Standard mill length or custom cut length according to the purchase specification
MOQ for 201 / 304 300kg per size and wall-thickness specification
MOQ for 316 3 metric tons per size/specification
Processing Cutting, deburring, drilling/punching review, bending review, polishing and customized end preparation
Typical Supply Form Straight lengths, cut pieces or project-based fabricated components
Grade Selection

201 vs 304 vs 316

Small Diameter Stainless Steel Tubes in Round, Square & Rectangular Shapes - Grades 201/304/316 by VVINSCO

201 — Dry Indoor UseCost-conscious material for interior furniture, decorative components and protected environments with limited moisture exposure.
304 — General-Purpose ChoiceCommonly selected for appliances, instruments, hardware and indoor or general outdoor components.
316 — Enhanced Corrosion ResistanceConsider for humid, coastal or chloride-exposed environments. Production requires at least 3 tons per specification.
Surface Decision

Choose the Finish by Appearance and Processing

Small Diameter Stainless Steel Tubes in Round, Square & Rectangular Shapes - Grades 201/304/316 by VVINSCO

2BPractical base surface for further fabrication or applications where a decorative grain is not required.
Brushed / SandedDirectional texture for visible components. Confirm grit, visible face and grain direction.
Bright PolishedReflective appearance for decorative and exposed parts. Protective packing is recommended.
Manufacturing Reference

Tube Detail, Measurement and Custom Processing

Small stainless steel tube profile and manufacturing detail
Profile size and weld condition are checked against the approved specification.
Small diameter stainless steel tube specification reference
Size, wall and tolerance must be matched to the actual component drawing.
Tolerance guidance: tolerance cannot be fixed by one general number for every small tube. It depends on the outside size, wall, shape, length, production route and order quantity. State the critical tolerance on the drawing for technical review.
Buyer Application Guide

Typical Uses for Small Stainless Steel Tubing

Electrical & Instrument ComponentsWire-protection sleeves, probe housings, sensor covers and compact instrument components that do not require an unconfirmed pressure rating.
Appliances & HardwareSmall frames, guides, handles, spacers, sleeves and fabricated metal parts.
Furniture & DisplayDecorative rods, compact supports, display structures and small square or rectangular frames.
Custom ComponentsCut pieces and processed parts made from an approved drawing or sample.

Medical, food-contact, pressure, fluid-transfer or safety-critical use requires the applicable material standard, cleanliness, testing and certification to be separately confirmed.

Application References

From Straight Tube to Finished Components

Small stainless steel tube application and component reference
Select the profile according to the component design and assembly method.
Custom small stainless steel tube processing applications
Cutting and additional processing can be reviewed from drawings or samples.
Small diameter stainless steel tube custom fabrication
Confirm surface protection when the tube will remain visible after installation.
VVINSCO small stainless steel tube factory supply
Order details are checked before bundling and export packing.
Processing and Quality Control

What VVINSCO Checks Before Shipment

Small Diameter Stainless Steel Tubes in Round, Square & Rectangular Shapes - Grades 201/304/316 by VVINSCO

Small Diameter Stainless Steel Tubes in Round, Square & Rectangular Shapes - Grades 201/304/316 by VVINSCO

Small Diameter Stainless Steel Tubes in Round, Square & Rectangular Shapes - Grades 201/304/316 by VVINSCO

Small Diameter Stainless Steel Tubes in Round, Square & Rectangular Shapes - Grades 201/304/316 by VVINSCO

Small Diameter Stainless Steel Tubes in Round, Square & Rectangular Shapes - Grades 201/304/316 by VVINSCO

Processing Services

  • Cut to project length
  • Deburring and end finishing
  • Drilling or punching feasibility review
  • Bending and forming review
  • Surface polishing and protection

Inspection Points

  • Material grade against order requirement
  • Outside size and wall thickness
  • Length, shape and straightness
  • Surface and visible weld condition
  • Quantity, labels and packing

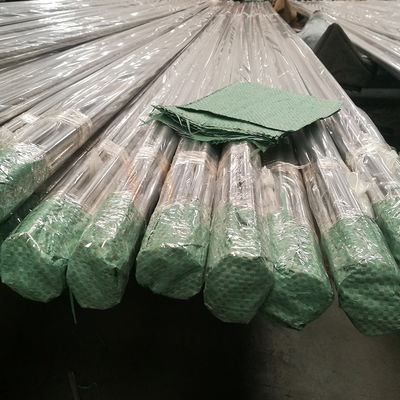

Surface Protection

Protective film or individual sleeves can be selected for bright and brushed tubes to reduce handling damage.

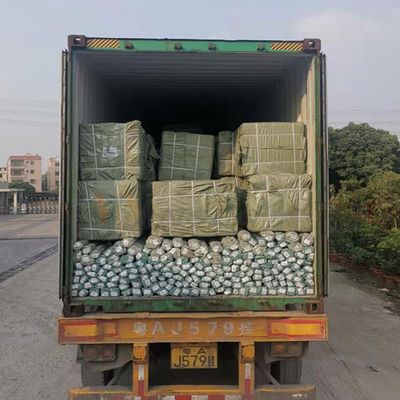

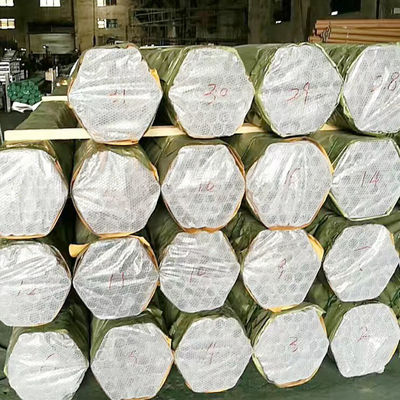

Export Packing

Small bundles, woven outer wrapping, protective board, cartons or wooden cases can be reviewed according to length, surface and unloading method.

Buyer Confidence

Why Buyers Work with VVINSCO

Small Diameter Stainless Steel Tubes in Round, Square & Rectangular Shapes - Grades 201/304/316 by VVINSCO

23+ Years of ExperienceManufacturing and export experience supporting stainless steel tubes and customized metal components.
Shape-Specific ProductionRound, square and rectangular sizes are assessed by tooling, wall, grade, finish and tolerance.
Customization SupportLengths, processing, surface protection, marking and packing can be reviewed from drawings or samples.
Buyer Questions

Frequently Asked Questions

Are all these products capillary tubes?

No. The range includes small-diameter round tubes, square tubes, rectangular tubes and capillary-type products. The correct name depends on the shape, outside size, inside size and wall.

What is the minimum order for 201 or 304?

The minimum is normally 300kg for each size and wall-thickness specification.

Can VVINSCO produce grade 316?

Yes. Grade 316/316L production requires at least 3 metric tons per size/specification.

Can you guarantee ±0.02mm tolerance?

Not for every size and shape. Send the drawing and critical dimension so the producible tolerance and inspection method can be confirmed before quotation.

Can the tubes be cut, bent, drilled or welded?

Yes, subject to technical review. Processing feasibility depends on profile, wall, grade, length, bend radius, hole pattern and tolerance.

What information should I send for quotation?

Provide shape, outside size, wall, grade, finish, length, quantity, tolerance, processing drawing, packing and destination port.

Request a Custom Quotation

Send VVINSCO Your Small Tube Drawing

We will review the producible size, wall, grade, finish, tolerance, processing and packing before preparing the quotation.

1. Shape2. Size3. Wall4. Grade5. Finish6. Length7. Quantity8. Drawing
