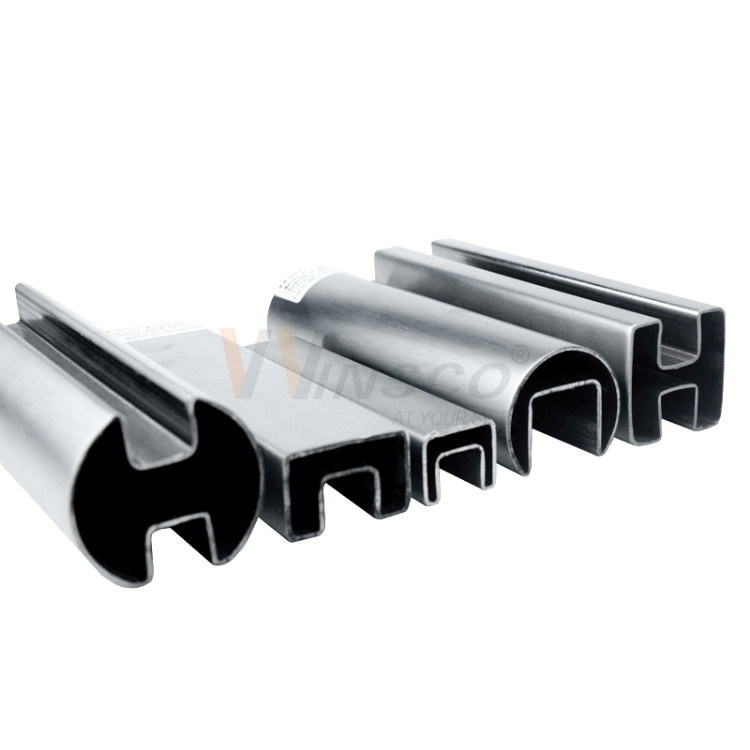

Stainless Steel Single & Double Groove Slotted Tube, 201 304 316 Inox Welded Pipe | Round Square Rectangular Oval Special Shaped
Product Description:
WinscoMetal stainless steel single & double groove slotted tube is ERW welded inox pipe, available in round, square, rectangular and oval special shapes, with grades AISI 201, 304 and 316.
The pipe is engineered with single slot or double groove, designed to hold glass panels directly for railing systems. Made of premium stainless steel, it features outstanding durability and corrosion resistance for indoor and outdoor projects.
We supply a wide range of custom sizes and profiles. Different steel grades provide varied mechanical performance and anti-corrosion capacity, so you can select suitable material according to your project environment and budget.
Multiple surface finishes are available: brushed hairline, mirror polish, PVD color coating and anti-fingerprint treatment. We also support different wall thickness options to meet different load requirements.
Product Advantage:
1. High-quality raw materials: Raw material composition inspection, uniform thickness, flat and neat strip surface. Adopt premium steel strips with no peeling, blisters or scratches.
2. Reliable quality: Robust structure and long service life. Full quality control from raw material inspection to finished products, strong load-bearing performance.
3. Stable supply: Direct factory manufacturer with abundant inventory, diversified profiles, fast lead time and stable production capacity.
4. Precision testing: Strict inspection on thickness tolerance, length tolerance, straightness and twisting degree.
5. Mature production: Complete production equipment and standard manufacturing process, capable of manufacturing various custom stainless steel slotted pipes.
6. Custom processing: Over 15 years of stainless steel export experience. Support custom fabrication according to drawings or samples.
Specifications:
| Description |
Tube En Inox;Tig Welded Stainless Steel Pipe;Stainless steel tubes for
mechanical and structural purposes
|
| Material Grade |
AISI201/AISI301/ SUS304/ AISI316L/ AISI410 |
| Standard |
ASTM A554/JIS G3446 /CNS 5802 /EN 10217-7/EN 10296-2,EN 10305-2,
EN 10305-5.
|

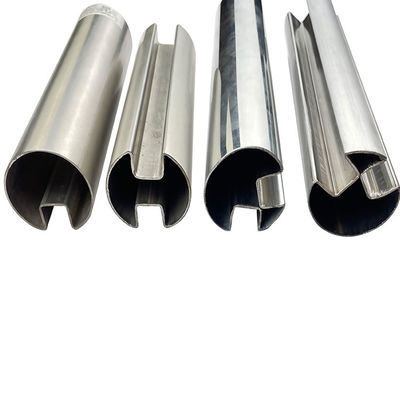

| SS Round Single Slot Pipe |
Slot(WxH) |
OD(mm) |
WT(mm) |
Glass Thickness |
| 14mmx14mm |
25.4 |
1.0-1.5 |
5-12mm |
| 15mmx15mm,23.5mmx13mm |
38.1 |
1.0-1.5 |
5-12mm |
| 15mmx20mm,15mmx15mm,20mmx20mm, 24mmx24mm |
42.4 |
1.0-1.5 |
5-12mm |
| 19.7mmx31.8mm,24mmx24mm,27mmx30mm |
48.3 |
1.0-1.5 |
5-12mm |
| 15mmx15mm,27mmx30mm,13.8mmx15mm |
50.8 |
1.2-2.0 |
5-12mm |
| 20mmx20mm,25mmx25mm,25mmx40mm, 15mmx15mm |
60.3 |
1.2-2.0 |
5-12mm |
| 25mmx25mm,38mmx45mm |
76.2 |
1.2-2.0 |
5-12mm |
| SS Round Double Slot Pipe |
Slot(WxH) |
OD(mm) |
WT(mm) |
Glass Thickness |
| (15mmx15mm)+(15mmx15mm) |
50.8 |
1.0-1.5 |
5-12mm |
| (25mmx55mm)+(25mmx55mm) |
60.3 |
1.0-1.5 |
8-22mm |
| (25mmx25mm)+(25mmx25mm) |
76.2 |
1.0-1.5 |
8-22mm |

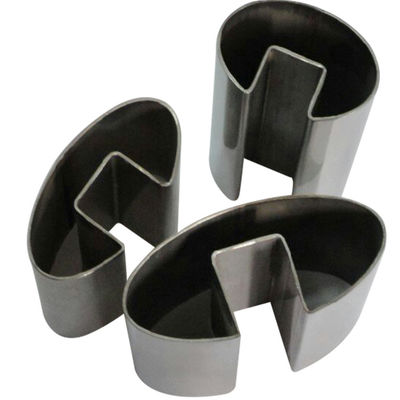

| SS Oval Single Slot Pipe |
Slot(WxH) |
OD(mm) |
WT(mm) |
Glass Thickness |
| 15mmx20mm,15mmx15mm |
60x40 |
1.0-1.5 |
8-12mm |
| 26mmx17mm |
70x35 |
1.0-1.5 |
8-22mm |
| 20mmx20mm,24mmx24mm,33mmx26mm |
80x40 |
1.0-1.5 |
8-22mm |
| 40mmx20mm |
86x58 |
1.0-1.5 |
8-22mm |
| 25mmx25mm |
87x65 |
1.0-1.5 |
8-22mm |
| 45mmx40mm |
100x52 |
1.0-1.5 |
8-22mm |
| 33mmx26mm |
110x40 |
1.0-1.5 |
8-22mm |
| SS Square / Rectangular Double slot Pipe |
Slot(WxH) |
Size(mm) |
WT(mm) |
Glass Thickness |
| (15mmx15mm)+(15mmx15mm) |
40x40 |
1.0-1.5 |
5-12mm |
(15mmx15mm)+(15mmx15mm),
(25.5mmx32mm)+(25.5mmx32mm) |
50x50 |
1.0-1.5 |
5-12mm |
| (25mmx25mm)+(25mmx25mm) |
60x60 |
1.0-1.5 |
8-22mm |
| (25mmx13mm)+(25mmx20mm) |
85x40 |
1.0-1.5 |
8-22mm |

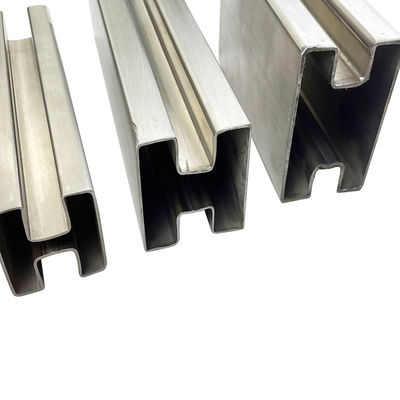

| SS Square / Rectangular Single Slot Pipe |
Slot(WxH) |
Size(mm) |
WT(mm) |
Glass Thickness |
| 5mmx8mm |
19x19 |
1.0-1.5 |
5-12mm |
| 15mmx15mm |
30x30 |
1.0-1.5 |
5-12mm |
| 15mmx15mm |
31.8x31.8 |
1.0-1.5 |
5-12mm |
| 15mmx15mm |
38x38 |
1.0-1.5 |
5-12mm |
| 15mmx15mm,20mmx20mm |
40x40 |
1.0-1.5 |
5-12mm |
| 15mmx15mm |
40x60 |
1.0-1.5 |
5-12mm |
| 15mmx15mm,20mmx20mm |
50x50 |
1.0-1.5 |
5-12mm |
| 15mmx15mm,20mmx20mm |
50x25 |
1.0-1.5 |
8-22mm |
| 25mmx25mm |
60x60 |
1.0-1.5 |
5-12mm |
| Thickness |
0.3mm,0.4mm,0.5mm,0.6mm,0.7mm,0.8mm,0.9mm,1.0mm,1.2mm,1.5mm,
2.0mm,2.5mm,2.75mm,3.0mm,customized.
|
| Section Shape |
Round Single Slot,Round Double Slot,Square/Rectangular Single slot, Square/Rectangular Double slot,Oval Single Slot. |
| Surface |
180G, 240G,320G,600G, 800G Mirror finished, Satin/Hairline 180G, 240G, 320G, 400G;TITANIUM FINISHED etc. |
| Length |
1m,2.5m,3m,5.85m,6m,6.1m,7m,length can be customized. |
| Application |
Building Handrail,Railing,Door construction,decoration, Furniture, Fence, Industry,food industry for tube transfer or to make other fittings. Commercial Tubing,Instrumentation Tubing, Petroleum, oil and gasboiler etc. |
Application:
Our stainless steel single & double groove slotted tube is widely used for glass railing and stair handrail projects, both for residential and commercial buildings such as shopping malls, villas, hotels and balcony railings.
This grooved inox welded pipe is also suitable for structural and decorative projects requiring high strength and corrosion resistance. It can be applied in outdoor deck, patio, fence guardrail, as well as machinery and industrial equipment manufacturing.
With built-in slot design, glass panels can be installed directly without extra clamps, which saves installation cost and brings clean, modern visual effect for your railing system.
